Box: stainless steel 1.4301 (AISI304)

Box: stainless steel 1.4301 (AISI304)

Box cover: stainless steel 1.4301 (AISI304), surrounded by foamed polyurethane plastic (PU) seal 180°

Hinge: Zinc

press surface: box and cover wire drawing, Size 240 180° Hinges: Chrome-plated

protection class IP, According to IP 66

IEC60529 standard: Protection Class NEMA: NEMA 4X

box with box cover Scope of Supply :180° hinge (2 pieces) support rail TS35/7.5, quick-change threaded interface with plastic socket

Basic material: stainless steel

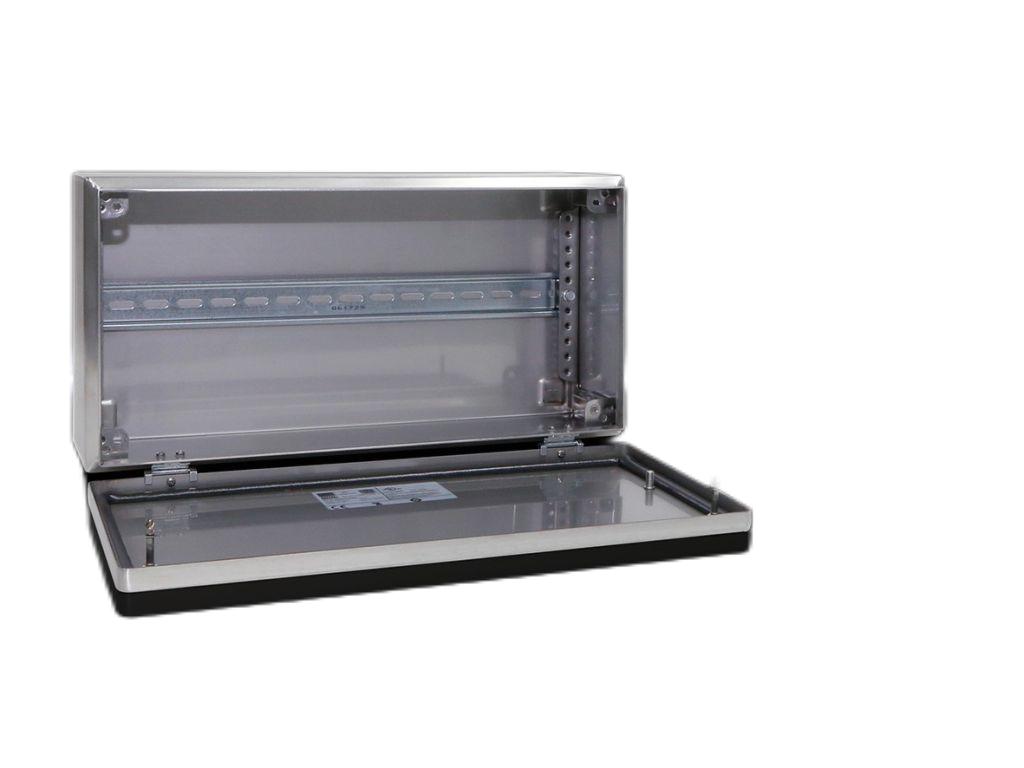

Product Description Size: Width: 400mm Height: 200mm Depth 123mm

Supporting rail: 1

Supporting rail type: The material thickness can be adjusted on

the profile slats: 1.5mm for the box and 1.25mm for the door
