Japan Paka automobile industry coating line

Basic specifications of coating equipment

1. Treated product: material of distribution board parts: MS size method: maximum 2300l * 800W * 2300mm area: maximum 8m2h / g, standard 4m2h / G2 Production capacity treatment area: 385096m2 / year number of slings: 96274hg / year 3 Transportation method P & amp; F lifting conveying interval:

*Pretreatment area：1600mm

*Electrophoresis area: 1850mm

*Electrophoresis drying area: 1300mm

*Powder coating area: 7000mm

*Powder drying area: 2500mm

*Solvent coating area: free rail manual transfer

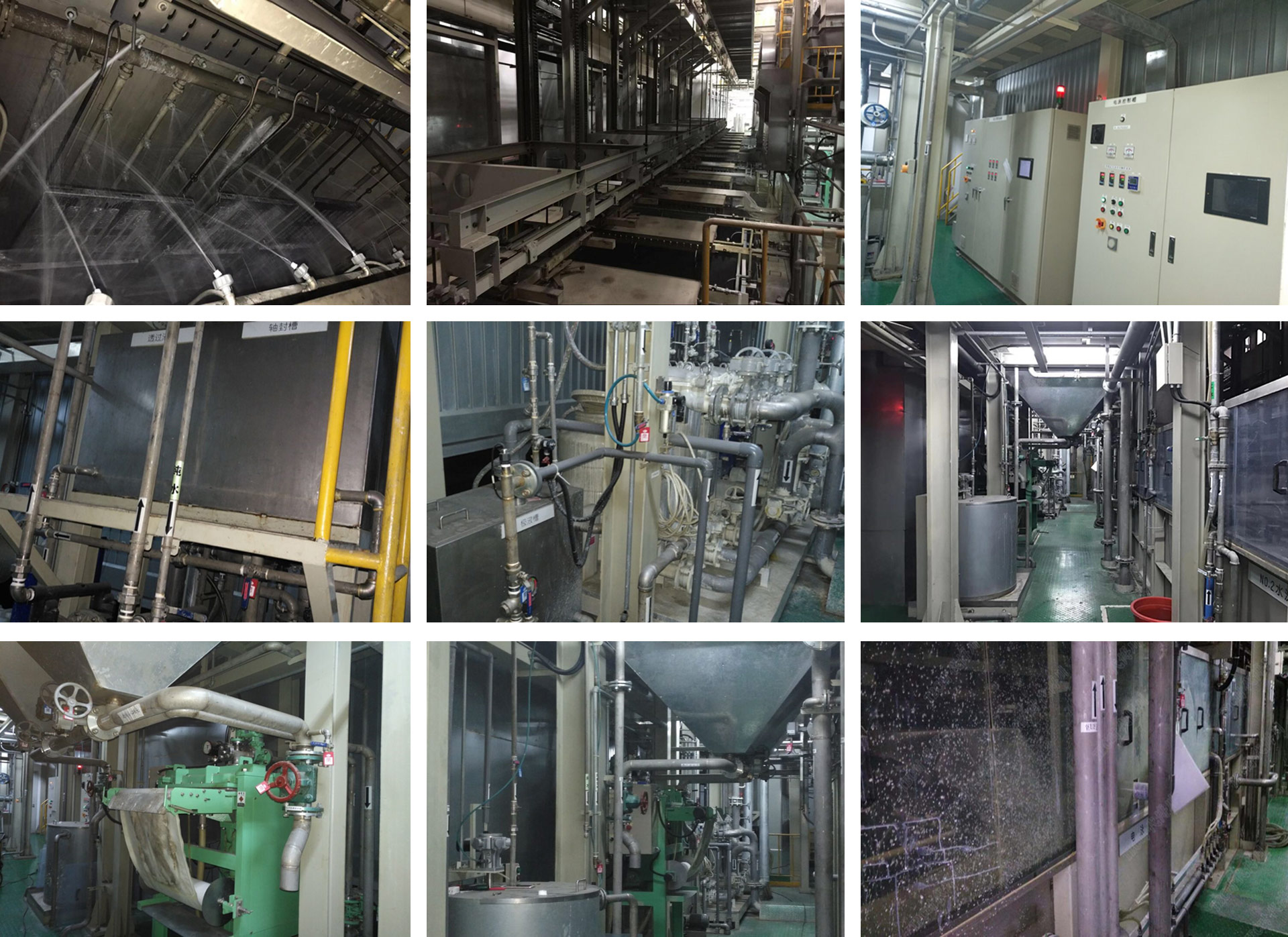

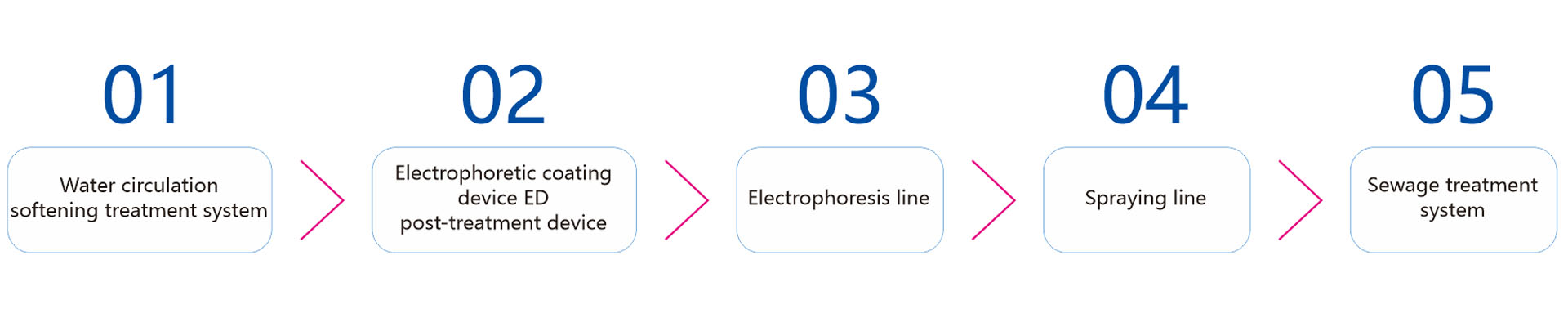

Process flow of PACA automotive industry coating line in Japan

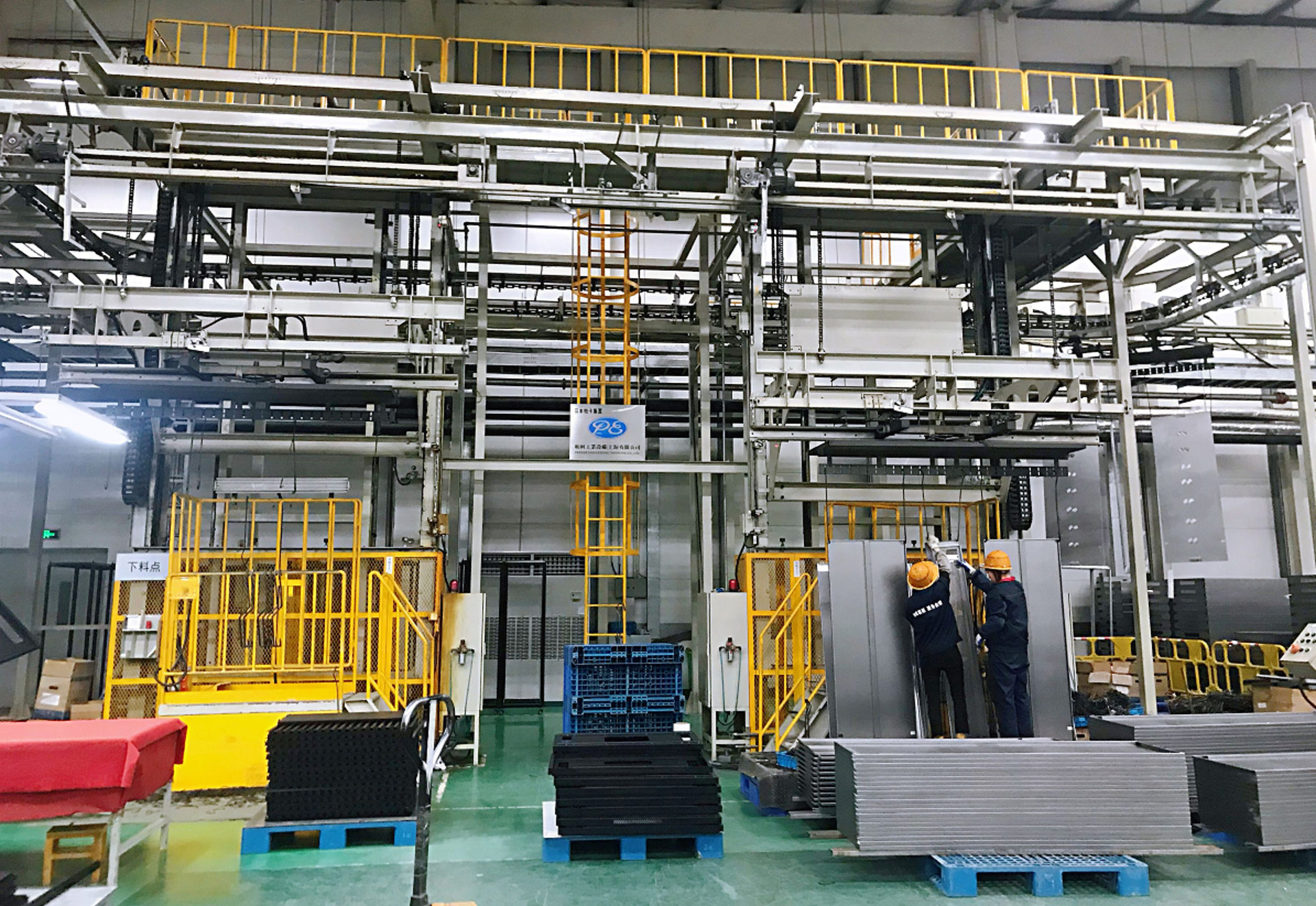

• 01 / loading and unloading area

  1. Hanging mode: manual hanging

  2. Lifting mode: automatic electric lifting

  3. Lifting speed: 5.3m/min

• 02 / pretreatment area

  1. Hanging mode: manual hanging

  2. Lifting mode: automatic electric lifting

  3. Lifting speed: 5.3m/min

• 03 / electrophoresis area

  1. Hanging mode: manual hanging

  2. Lifting mode: automatic electric lifting

  3. Lifting speed: 5.3m/min

• 04 / electrophoresis drying area

  1. Hanging mode: manual hanging

  2. Lifting mode: automatic electric lifting

  3. Lifting speed: 5.3m/min

• 05 / powder coating area

  1. Hanging mode: manual hanging

  2. Lifting mode: automatic electric lifting

  3. Lifting speed: 5.3m/min

• 06 / powder drying area

  1. Hanging mode: manual hanging

  2. Lifting mode: automatic electric lifting

  3. Lifting speed: 5.3m/min

• 07 / solvent coating area

  1. Hanging mode: manual hanging

  2. Lifting mode: automatic electric lifting

  3. Lifting speed: 5.3m/min
