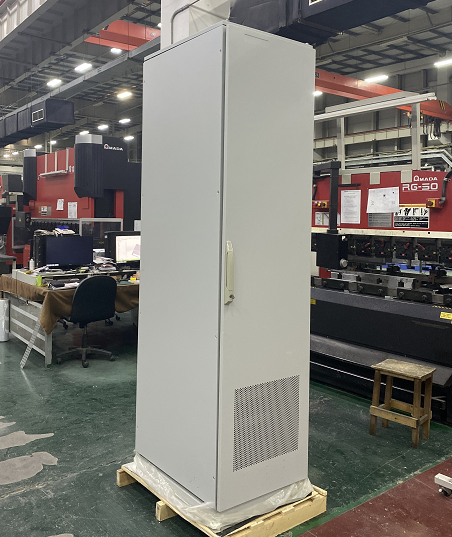

Driving control cabinet: CXG6647 control cabinet

It is mainly used in the CXG inter-station security information transmission cabinet control cabinet

1. Appearance of control cabinet: RAL7035, international gray, specification: 600*600*2200mm (width * depth * height)

2. Material: The cabinet is made of high-quality spcc cold-rolled steel plate, thickness: 1.2-2.0mm, 2.5mm thick mounting plate inside the cabinet, with 20mm wide U-shaped curved edges on both sides, which makes the mounting plate stronger and easier to carry

3. Features: The front and back doors of the control cabinet are closed steel doors with sealing foam strips and support frames inside. The sealing ring: polyurethane foam sealing strips ensure protection level. The side of the box is fitted with the sealing ring to prevent water and dust from falling into the cabinet. The cabinet door is 25mm off the ground base frame, and the three-section cable lead-in cover plate at the bottom of the cabinet can be replaced with each other, and it is easy to move, easy to import the cable, easy to open the hole into the wire. The ground screw wire, plastic slide guide can be used to push the mounting plate into the box from the front through the guide rail. Configuration: Frame selection of 10 fold profile or 18 fold profile frame, tool free installation in the cabinet; Front door high density hexagonal mesh door, rear door double open mesh door, opening rate 75%, ventilation and heat dissipation rate 80%, equipped with fan and filter to ensure ventilation in the cabinet, side door quick open installation, easy to remove the cabinet door bearing hinge installation, easy to change the cabinet door, the door can open 130°; Protection class IP54; The base can be installed separately, and it is easy to disassemble and install. The cabinet can choose double mounting plate, the installation capacity is large; The control cabinet connecting rod fork lock, the upper, middle and lower four points lock the cabinet door, (single door) left and right interchange door design, the installation Angle gauge standard 19-inch modular installation hole design, convenient installation of general equipment. Internal configuration door touch light, easy installation and detection. File bag to facilitate the storage of on-site work data;

4. With load 1200kg, seismic and EMC shielding function, can provide third-party test report.
