The buildings in the park in the city are complicated, and the traditional fire fighting facilities can only cover the place where the fire pipeline is laid, and there are still fire safety hazards in many places, so convenient fire safety equipment is needed. Fire intelligent cabinet is equipped with professional booster pump, foam fire gun, fire extinguisher, fire ball and other fire emergency equipment, equipped with fire helmets, fire clothing, fire shoes, gas masks, fire blankets, fire axes, fire wrenches, fire hose and other fire materials, park personnel can wear fire clothing and other professional equipment through training, connect fire hydrants, fire fighting. At the same time, the cabinet is also equipped with first aid kits, medical kits and AEDs, for ordinary citizens, you can also use the fire supplies or medical supplies inside for simple self-protection and first aid. The fire cabinet is also equipped with a thermal imaging camera to support intelligent fireworks detection function, which can automatically alarm when the temperature rises abnormally or the fire situation is detected, and can ensure the safety of the park more efficiently.

The fire protection intelligent cabinet is equipped with a one-button alarm system. When a fire occurs in the park, the park personnel can obtain fire protection materials through visual induction and one-button opening of the cabinet according to the prompt screen and sound. At the same time, the alarm information is transmitted to the background, and the management personnel of the background will immediately adjust and respond, and take countermeasures according to the specific situation to solve the fire efficiently and quickly.

the general introduction of intelligent cabinet equipment

1: professional fire intelligent gateway, the main control CPU, with 2GB DDR4, 8G EMMC industrial memory, and EMMC capacity compatible with 8G and 32G; Edge computing; Support optical fiber, network cable, 4G, WIFI, network port 100 Mbit, gigabit self-adaptation; Support switching input/output (DI/DO)

2: The cabinet is equipped with a fixed booster pump to ensure the normal use of water pressure, covering the plane within 100 meters and the middle floor

3: sound and light alarm, AED defibrillator, high-definition display, thermal imaging camera, IP shout broadcast, face recognition, emergency key, rescue materials

4: Portable water, foam gun, foam, water can be quickly and freely switched, portable water, foam gun parameters: Rated flow rate: 130 L/min Rated pressure: 8bar Maximum pressure: 15bar Applicable pressure range: 2 ~ 12 bar foam box volume: 20L (Class A foam liquid) Foaming ratio: 5/10/20 times adjustable fire extinguishing agent use time: 37.5/16/7.5min Net weight: ≤ 6.35Kg Total load: ≤ 7.5KG Product size: length 940mmX width 280 mm

Details on the functions of the intelligent fire cabinet

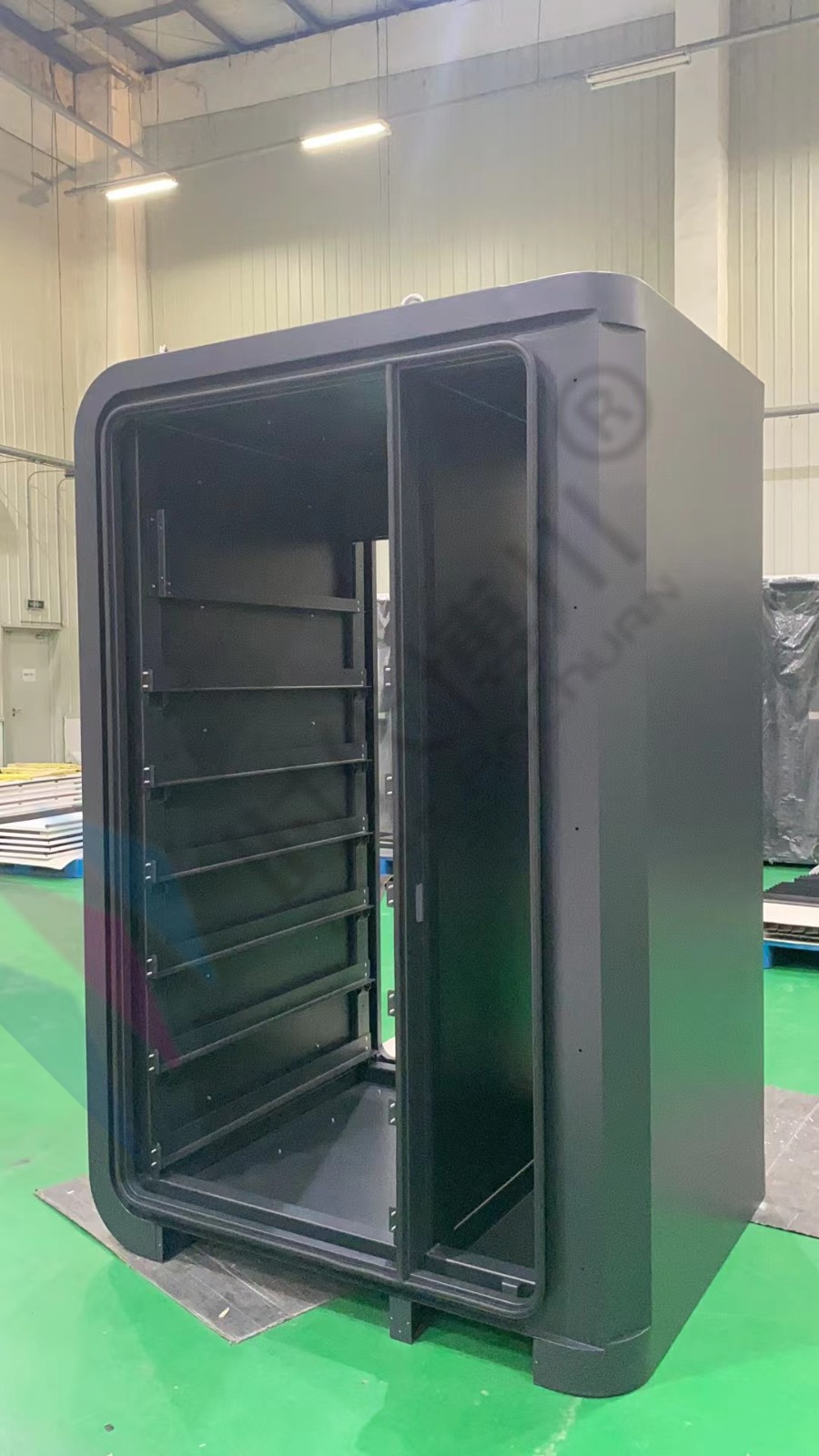

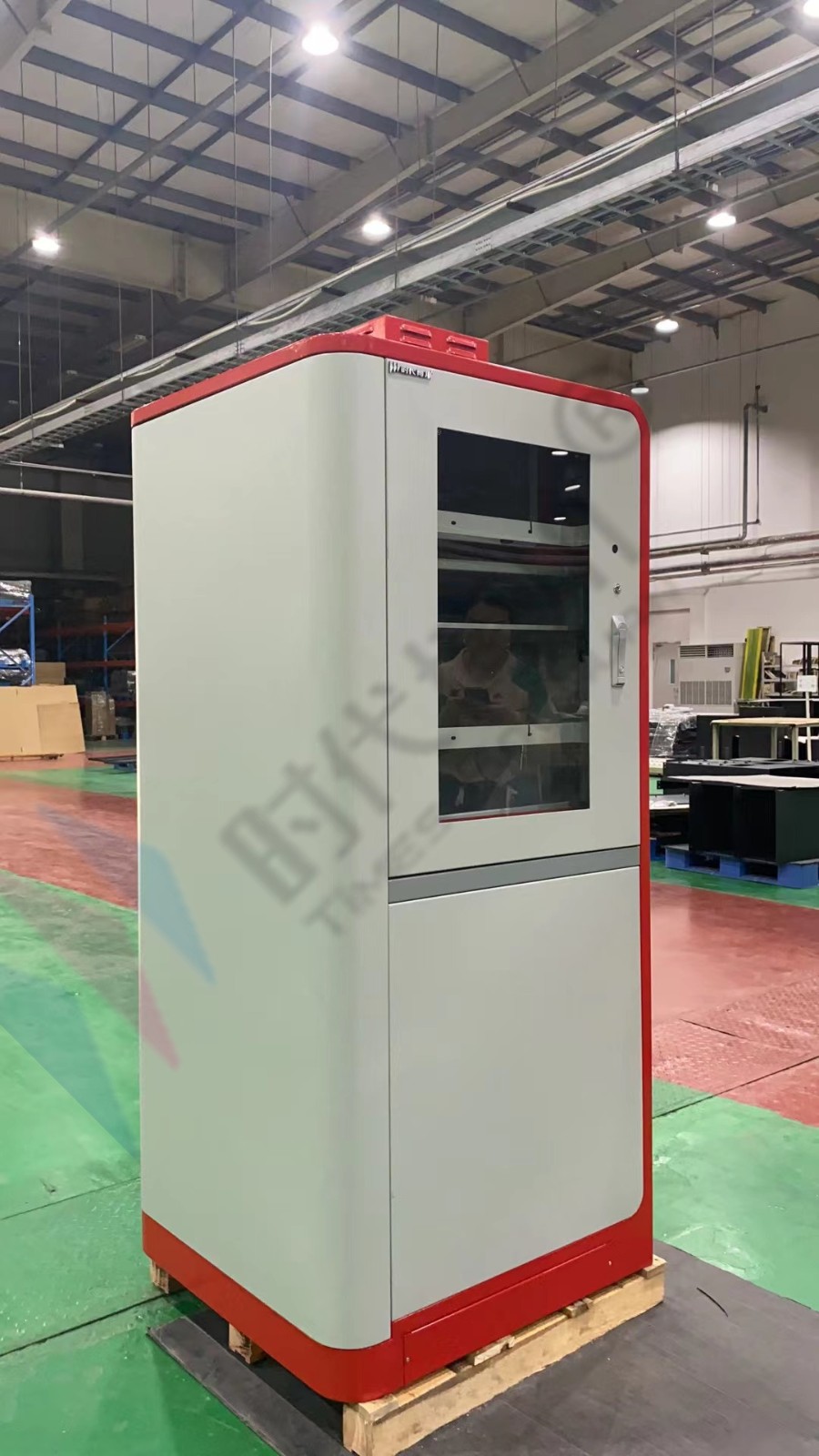

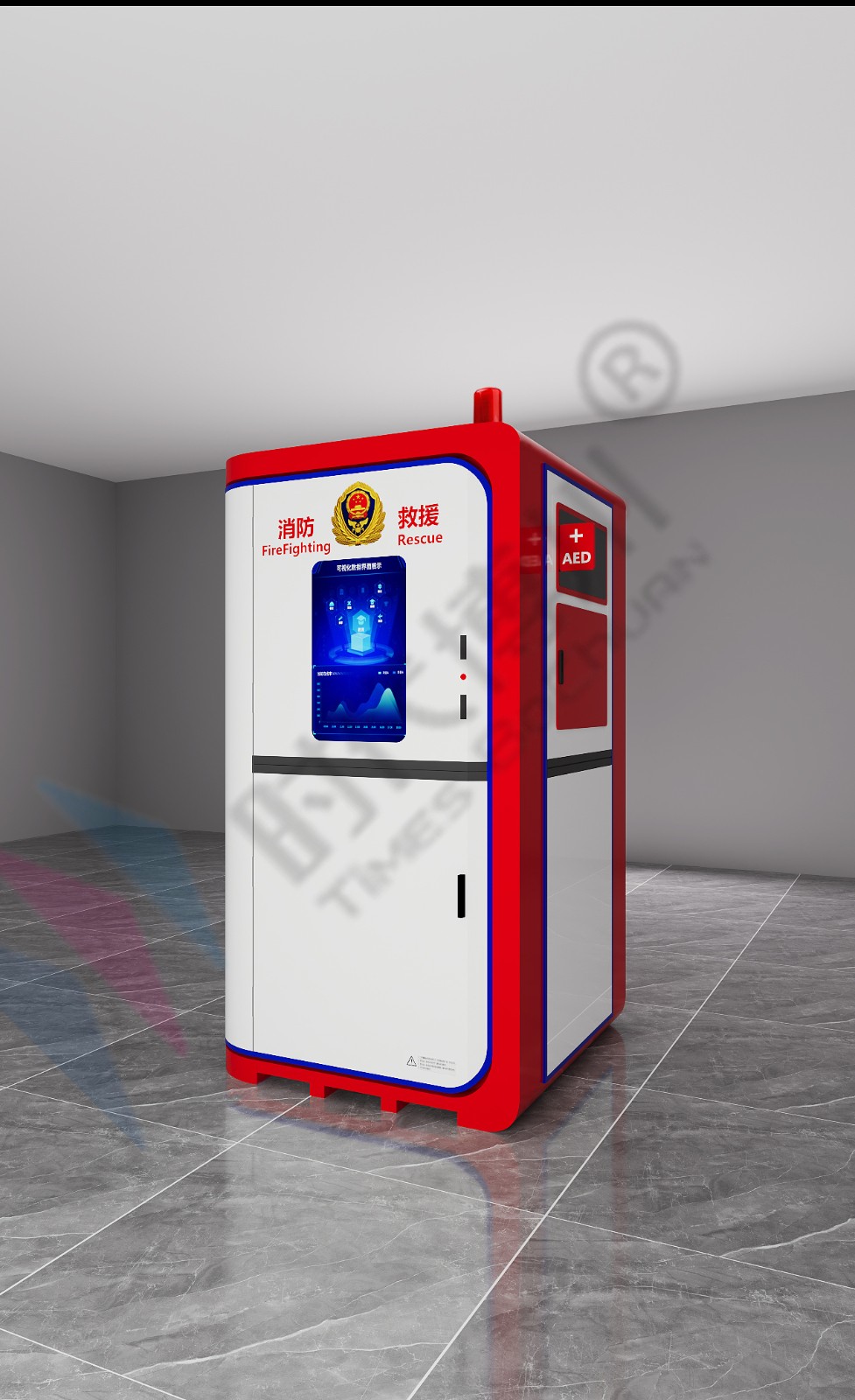

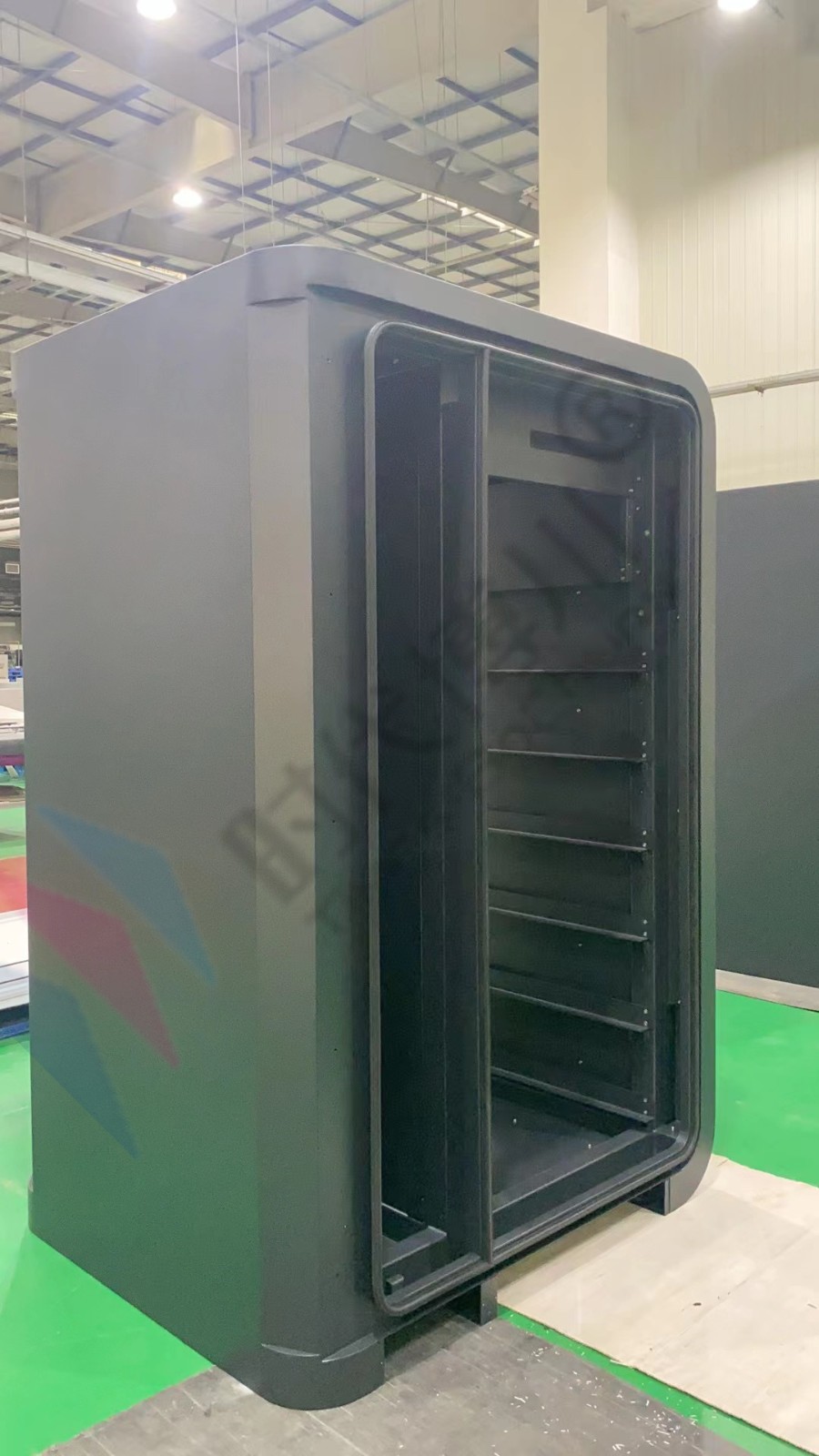

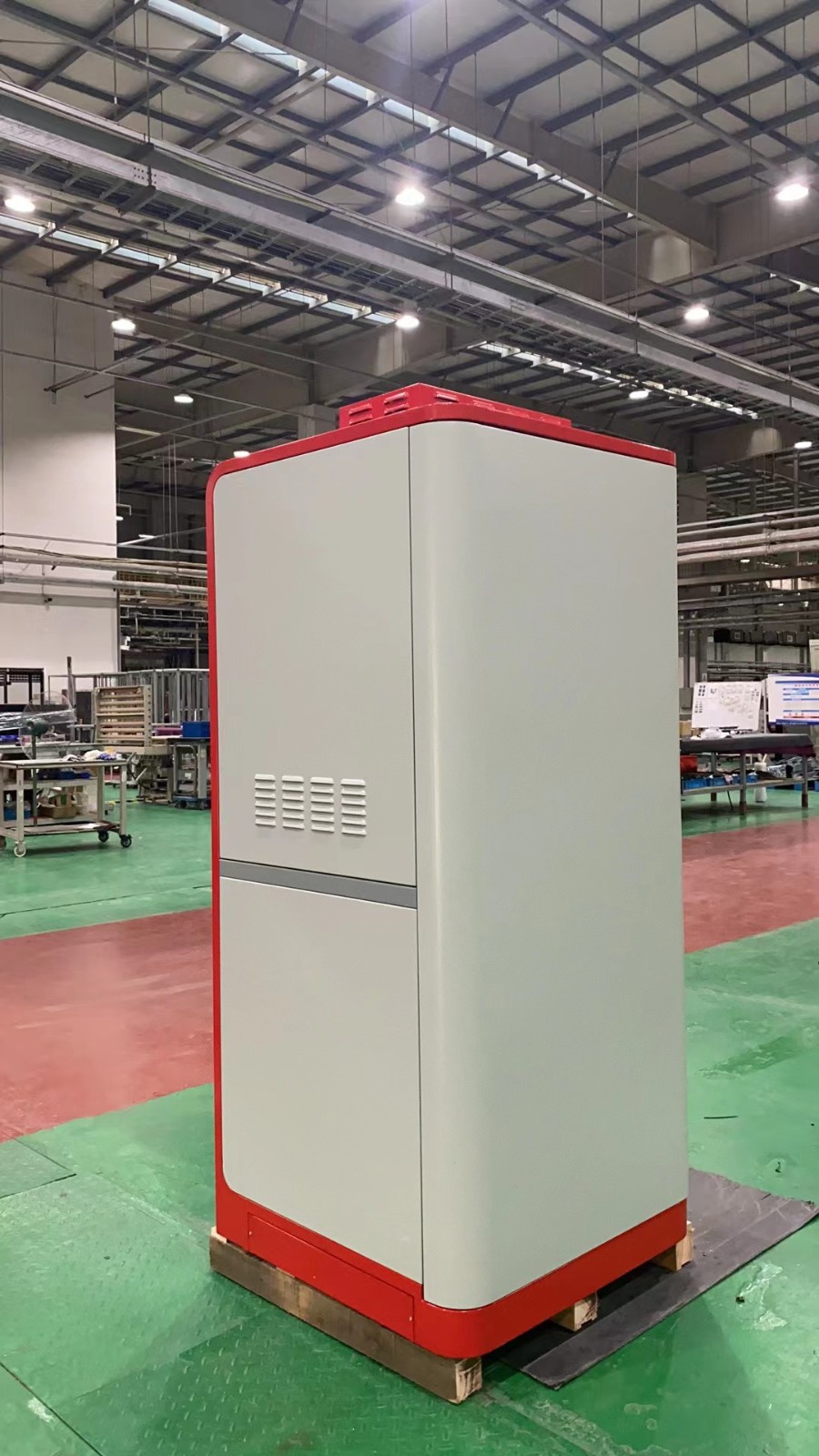

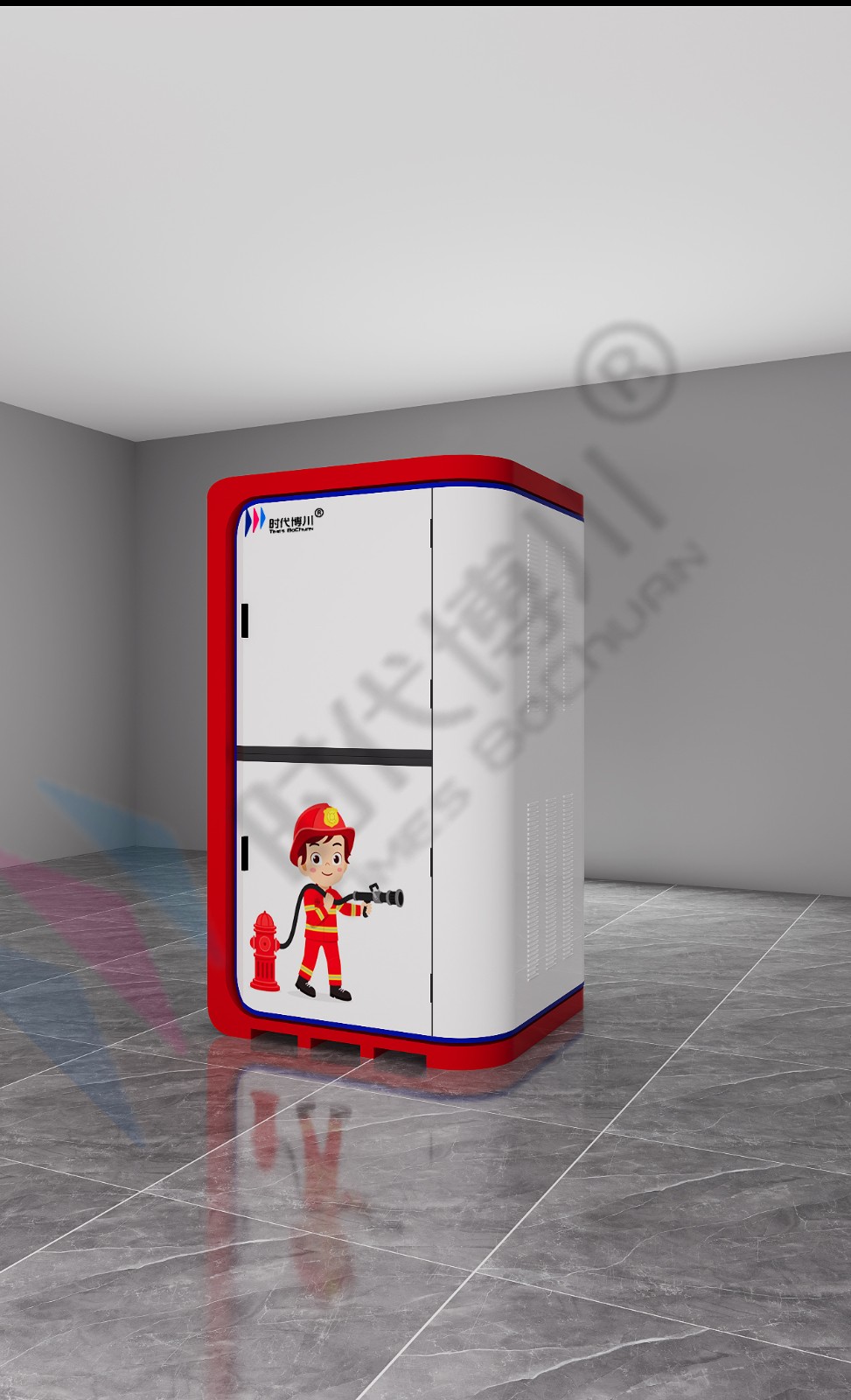

1, the fire cabinet cabinet adopts the overall waterproof structure processing, classification box, pull design, can store fire rescue materials, with face recognition camera, record open cabinet face, with full frequency horn sound and light warning light

2, one key alarm integrated camera induction, support sound and light alarm light, support alarm information background report, Support APP and SMS notification function, etc.

3, thermal imaging warning camera detects the automatic alarm of fireworks information, and the alarm information is sent to the responsible person's mobile phone and APP

4, shout broadcast when the alarm information occurs, automatically broadcast the alarm information, through the background center or APP visual scene shout, play a public rescue or warning role;

5, information release screen 32 inch high-definition inch industrial screen, light sense can automatically adjust the brightness. Protection class: IP65;

6, fire materials micro fire cabinet commonly used materials, fire clothing, ax, helmet, fire mask, fire wrench, etc.

7, booster pump flow 80L/min or more, fixed, can be used when opening

8, portable foam fire gun rated flow 80L/min or more; Applicable pressure range: 2-12bar; Foaming ratio: 5/10/20 times adjustable, containing foam liquid

9, quick fire system 65mm caliber fire hose, 40mm caliber fire hose, 65mm and 40mm adapter, water gun head, fire ball, fire extinguisher, booster pump transfer, etc.

10, medical supplies Medical supplies first aid kit, Standard first aid kit (first aid blanket, tourniquet, disinfection tablets, bandages, etc.)

11, installation and construction services Provide technical support for cabinet survey, transportation, installation, with software debugging, with integrated hardware installation

12, intelligent AED device with automatic boot function, open the cover of the machine parts, do not press the open, shut down power button, the machine automatically start up, simple and convenient operation; The defibrillation discharge prompt prompts the rescuer to press the "electric shock" button to discharge by voice and button indicator. Automatic ECG defibrillation analysis; Dustproof and waterproof level: The system has a dustproof and waterproof design, and the level is not less than IP55.
