Host hardware features

(1) Metal body, 10.1" touch screen, does not occupy rack U position, cabinet door installation, saving valuable space for micro modules.

(2) Embedded industrial flat panel based on CPU AM335X, Cortex-A8 1.8GHz, 1G DDRIII memory on board, 8G storage space.

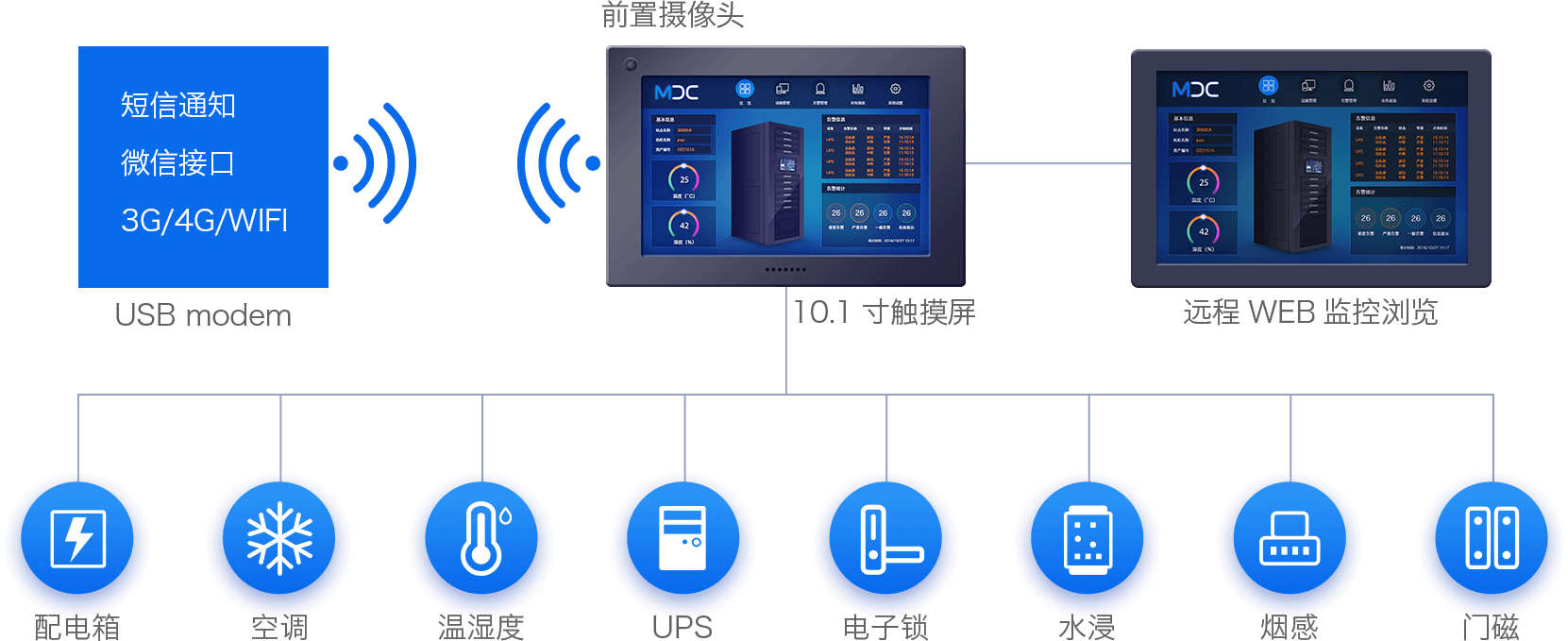

(3) Integrated 1 channel RS232, 5 channels RS485, 6 channels DI, 2 channels DO, 2 USB interfaces, an Ethernet port with 3G/4G modem expansion, access to UPS, air conditioning, power distribution cabinet, temperature and humidity, flooding, smoke detection and other comprehensive power environment equipment;

(4) Integrated 1 way RS232, 5 way RS485, 6 way DI, 2 way DO, 2 USB interfaces, an Ethernet port with 3G/4G modem expansion, access to UPS, air conditioning, power distribution cabinets, temperature and humidity, flooding, smoke detection and other comprehensive power environment equipment.

Host system features

(1) Intuitive interface, simple operation, built-in software, no installation;

(2) Support configuration interface, through the configuration tool can flexibly support a variety of configuration interface;

(3) single monitoring host access to 20 devices, support protocol access devices;

(4) Alarm SMS notification, more convenient and fast man-machine interface;

(5) Support 3G/4G (USB) networking, support IP networking.
