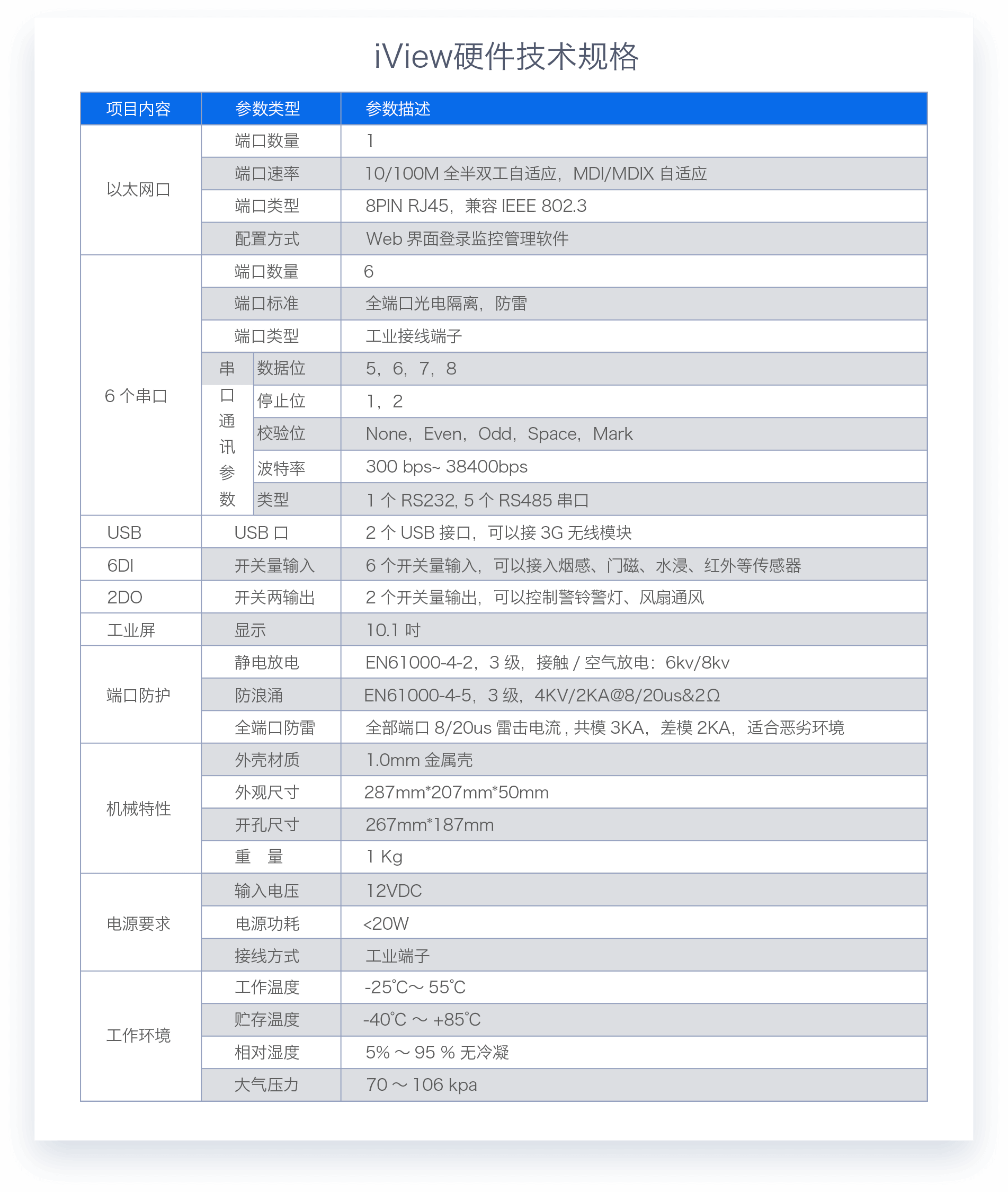

Host hardware features

(1) Metal body, 10.1-inch touch screen, not occupying the U position of the rack, cabinet door installation, saving valuable space of micro module;

(2) Embedded industrial tablet based on CPU am335x, cortex-a8 1.8GHz, 1g ddriii memory on board, 8g storage space;

(3) Integrated 1-way RS232, 5-way RS485, 6-way Di, 2-way do, 2 USB interfaces, 1 Ethernet port, with 3G / 4G modem expansion, which can be connected to UPS, air conditioner, distribution cabinet, temperature and humidity, water immersion, smoke sensing and other comprehensive power environment equipment;

(4) It integrates 1-way RS232, 5-way RS485, 6-way Di, 2-way do, 2 USB interfaces, 1 Ethernet port, with 3G / 4G modem expansion, and can be connected to UPS, air conditioner, distribution cabinet, temperature and humidity, water immersion, smoke sensing and other comprehensive power environment equipment.

Host system features

(1) Intuitive interface, simple operation, built-in software, no installation;

(2) Support the configuration interface, which can flexibly support a variety of configuration interfaces through the configuration tool;

(3) The ability of a single monitoring host to access 20 devices and support protocol access devices;

(4) Alarm short message notification, more convenient and fast man-machine interface;

(5) Support 3G / 4G (USB) networking and IP networking.
