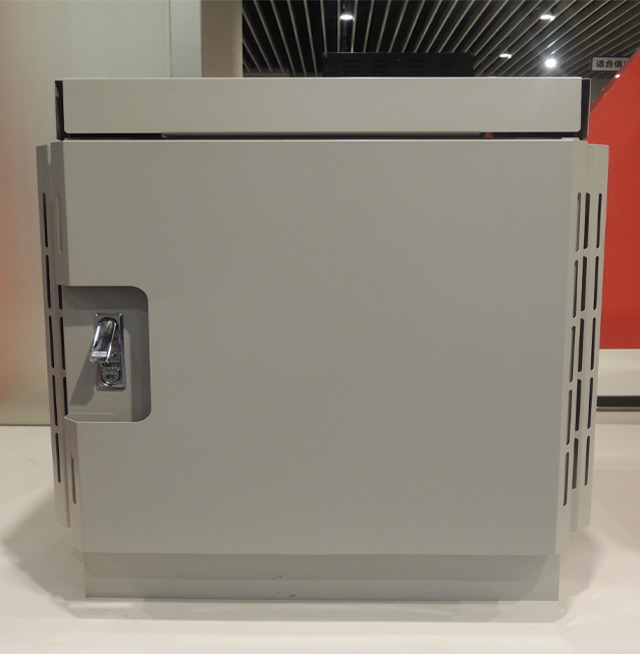

product features：

Material: The main frame is made of high-strength cold-rolled steel plate;

Careful design to meet the requirements of routing, ventilation, protection,

 load-bearing, etc.

Outdoor waterproof structure. Indoor and external wall installation or

hanging pole installation;

Materials can be customized according to customer needs

Material: cold rolled steel plate

surface treatment: cabinet phosphating primer treatment, cabinet external

powder coating, Color can be divided into RAL7032 and RAL7035 two kinds

of weaving, the installation plate is galvanized

protection grade :IP56(according to GB4205-1993)

Standard configuration: front door, backplane, mounting plate, cabinet, sealing

 strip, door lock, side plate (optional)

Steel thickness:

frame: 10 fold profile 1.5mm

door plate: 2.0mm

Backplane and side panel: 1.5mm

Mounting plate: 2.5mm (optional 3.0mm)
