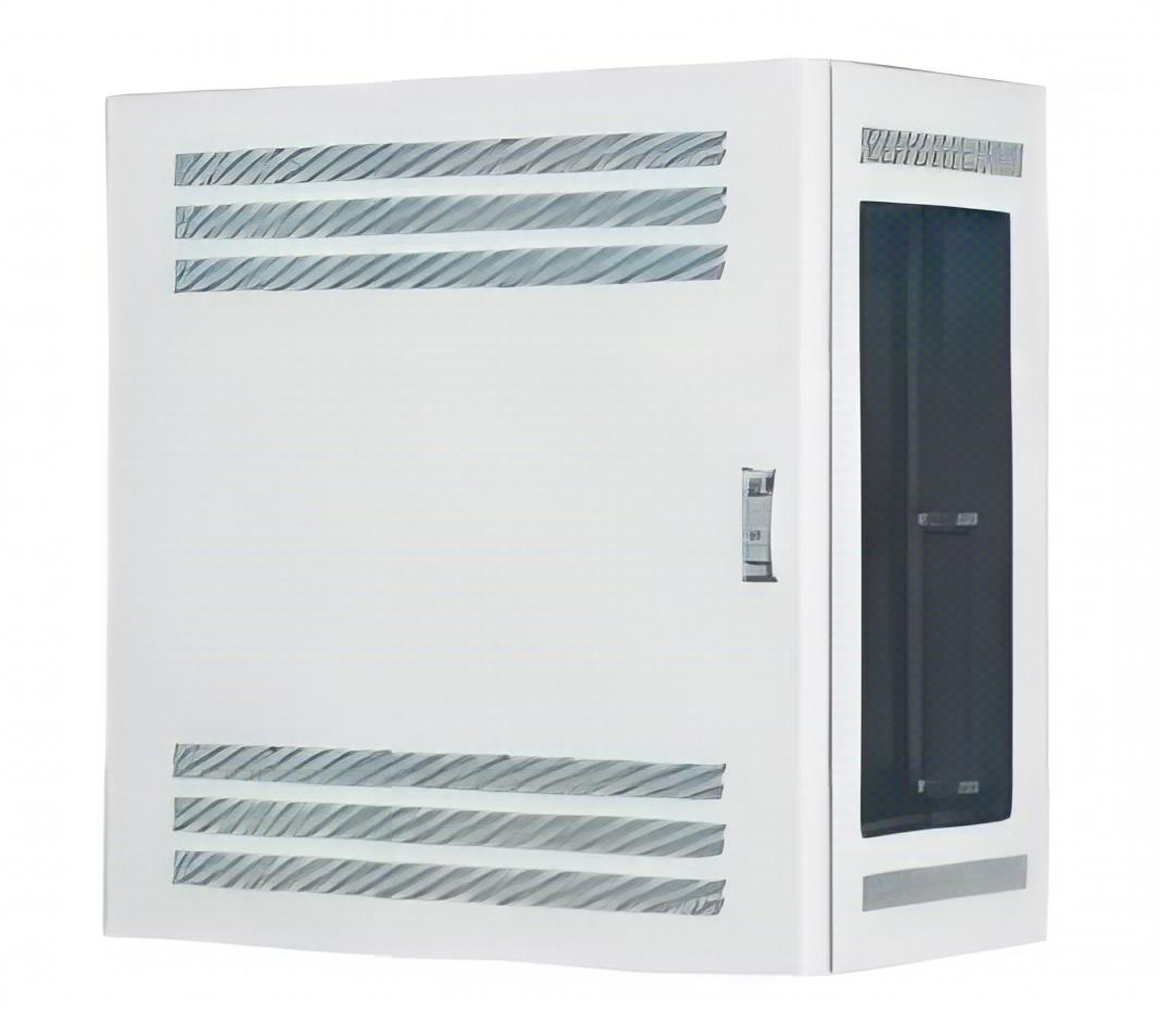

Industrial control cabinet>QUB Storage Case (Wall mounted)
Wall-mounted HUB and chassis for installation of communication instruments are convenient for storing a large number of communication equipment such as QUB. Support school and office LAN construction. 1. The front and right side are portal type, and the front Angle iron is detachable, so it has excellent equipment storage and maintenance performance. 2. In addition to QUB, splicing units can also be installed. 3. It can be mounted close to the top plate. 4. Type 19 QUB° (with mounting unit) Installation site Interior color Light white material Iron mounting plate Type 19 mounting unit (2.3mm) Wooden mounting plate (12mm) Cabinet plate Thick door 1.0-1.2mm, box 1.2, and opening plate 1.2mm Handle Plane handle Door style Front and right side facing door type |  |
Product specification
Product Model | boundary dimension | Bottom opening dimension | Front opening dimension | Side opening dimension | Installable unit | Spacing of mounting holes | effective size | Product Weight（kg) | Number of individual packages | ||||
width | height | depth | C1 | C2 | D | E | F | G | H | I | |||
THD16-565AC | 500 | 650 | 160 | 60 | 50 | 360 | 400 | 95 | 2U | 390 | 300 | 14.7 | 1 |
THD16-6565AC | 650 | " | " | " | " | 510 | 550 | " | " | 540 | 450 | 17.2 | 1 |
THD21-565AC | 500 | " | 210 | 105 | " | 360 | 400 | 145 | 3U | 390 | 300 | 16.1 | 1 |
THD21-6565AC | 650 | " | " | " | " | 510 | 550 | " | " | 540 | 450 | 18.7 | 1 |
THD25-565AC | 500 | " | 250 | 145 | " | 360 | 400 | 185 | 4U | 390 | 300 | 17.3 | 1 |
THD25-6565AC | 650 | " | " | " | " | 510 | 550 | " | " | 540 | 450 | 20.1 | 1 |
THD30-565AC | 500 | " | 300 | 180 | 60 | 360 | 400 | 235 | 5U | 390 | 300 | 18.6 | 1 |
THD30-6565AC | 650 | " | " | " | " | 510 | 550 | " | " | 540 | 450 | 21.7 | 1 |
THD34-565AC | 500 | " | 340 | 220 | | ||||||||
