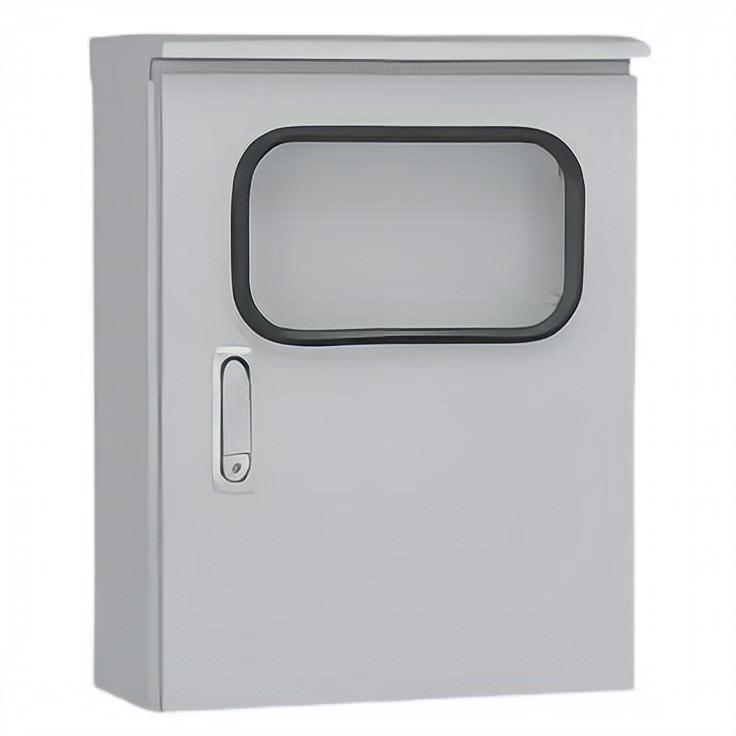

Waterproof structure, dustproof and waterproof gasket, control panel cabinet with Windows!

Monitoring equipment, measuring instruments, etc.

Waterproof flat handle, can be locked. (Key No.N200)

can change the position (depth direction) of the instrument panel. (20mm interval)

Instrument panel with easy to open and close handle type.

Outdoor IP44

installation site: Outdoor

IP Protection level: IP44

Color: off-white

Material: Iron

Installation substrate: Iron mounting plate (2.3mm) Milky white (2.5Y8/2)

Cabinet plate thickness: Door 1.6mm Cabinet body 1.6mm Instrument panel 1.6mm

Handle: waterproof flat handle (H-85)(key No. N2002:2)

Structure: water-proof structure with dustproof and waterproof gasket
