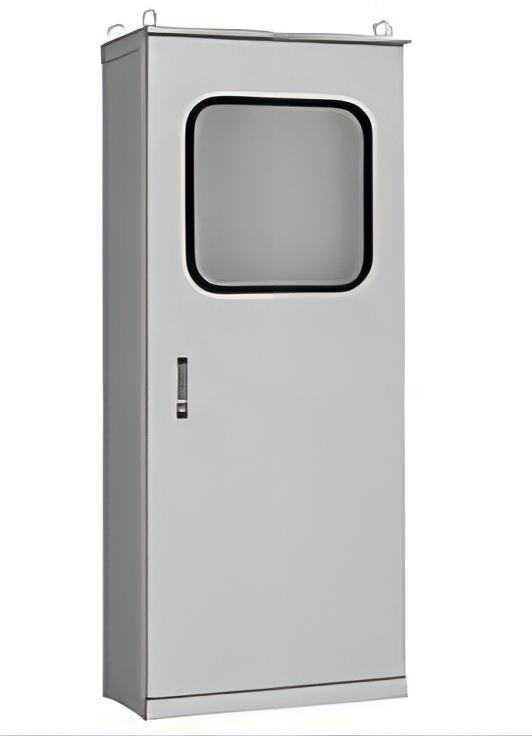

For outdoor management, monitoring of measuring instruments, with stainless steel ceiling, with Windows vertical control box!

Stainless steel waterproof flat handle with excellent functionality and design and can be locked.

The position of the instrument panel can be changed and the depth of the instrument can be adjusted.

Use a flat handle (H-11AN) to open and close the instrument panel.

A lighting panel can be installed on the top panel of the cabinet.

Outdoor IP44

installation site: Outdoor

IP protection level: single door IP44

Color: light beige (5Y7/1)

Material: stainless steel (SUS304)

Mounting plate: Iron mounting plate (2.3mm) Opal white (2.5Y8/2)

Cabinet plate thickness: Door 2.0mm Cabinet 2.0mm base 3.0mm meter panel (Iron) 2.3mm Hidden base 1.5mm

Handle: stainless steel waterproof flat handle (H-87S) (key No. N2002:2)

Door Style: single door
