IT monitoring>TBC1732 Enterprise-class Secure Digital KVM Switch

TBC1732 Enterprise-class Secure Digital KVM Switch

Product Features

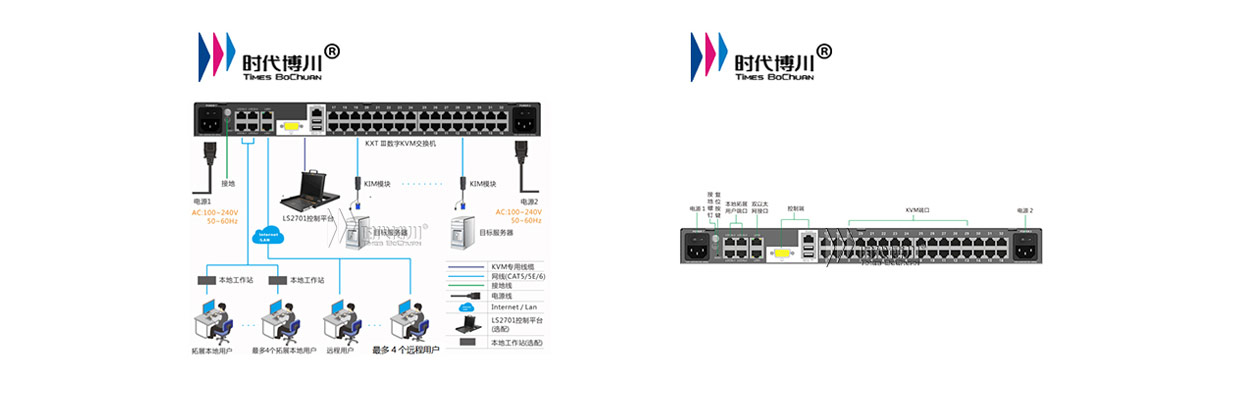

Supports 1 independent local console (VGA video output) and up to 4 independent local user ports (requires a local workstation), or the local console can be extended up to 150m, providing IT administrators with a diverse local room management solution;

OLED high-definition display provides better operation experience for human-machine interaction, and IP address and system-related information can be displayed through the keypad;

Based on java platform development, the client side supports multiple browser access, including IE, Firefox, Safari, Opera, Netscape; the target server side supports multiple operating systems, including Windows, Linux, Unix, Mac, Solaris (Sun), Redhat, Ubuntu; providing users with a full range of system and software support.

Support for fast and accurate synchronization of the local mouse on the user side and the remote host mouse, with responsiveness, improving the accuracy of management operations performed by administrators.

Local hotkeys (switch servers) using ALT+number keys to switch to the server screen of the corresponding port. Users can connect commonly used servers to KVM ports 1-9 for easy and quick switching, providing personalized settings for local administrators.

User password support for strong password protection. For different user requirements, the corresponding password strength can be selected, enhancing the ease of use and security of the system.

Number of users: 1 local user, 4 local extended users, 4 remote users

Number of computer connections: 32 ports

Port selection: OSD menu, hotkeys

Key switches: power, reset, function keys

LED indicator: device status indication

OLED display: function query, alarm display, etc.

Video resolution.

Local support: 2048 x 1536@60Hz

Remote support: 1920 x 1080 @ 60Hz
