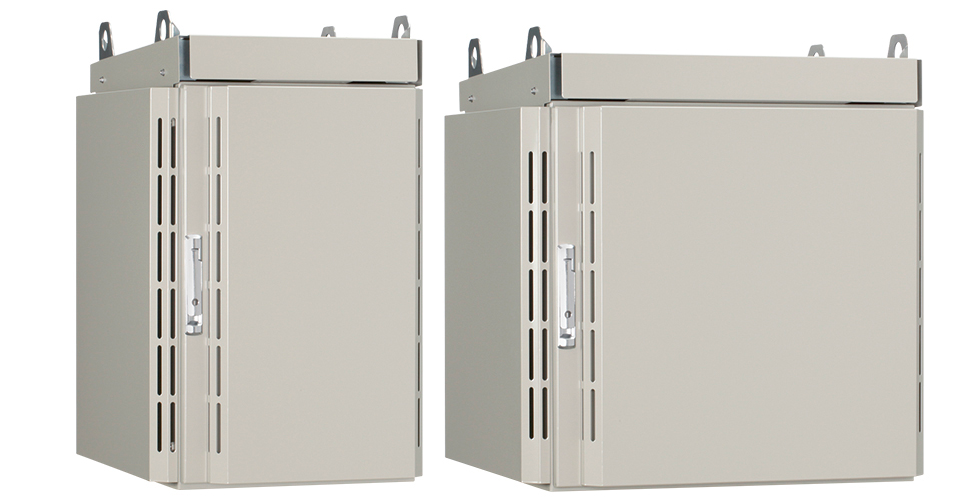

Outdoor communication cabinet>TCP outdoor thermal countermeasures Independent communication cabinet

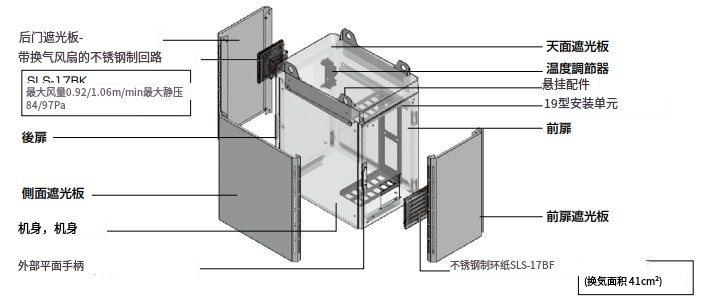

Outdoor installation IP Specification IP44 * 2/IP54 (Category 2 * 2 * 3) Painting Color Light beige painting (5Y7/1) Material Iron mounting part 19-inch mounting unit (2.3 mm) Chassis plate thickness Body 1.6mm Door 1.6mm shade 0.8mm Handle outside flat handle (Key No.N200:1) Door form Single door (both front and rear) Models with horizontal mounting equipment Type 19 All models are equipped with light shades to suppress internal temperature increases due to direct sunlight. Heat protection equipment will not fall off, excellent design. Smoke, heat exchanger and electronic cooler can be selected according to the heat output of the equipment and the setting environment. Stainless steel specifications · JIS specifications are also accepted, please order separately. (except interior parts) |  |
 |
 |
Product specification
| Product Model | width(mm) | depth(mm) | height(mm) | Carrier unit | product weight(KG) | abstract |
| TCP60-F1N | 440 | 725 | 680 | 6U | 44.5 | Ventilation fan with stainless steel shutter (2) disc · Moisture-proof type (exhaust x 1) with variable temperature regulator unit type |
| RCP50-H10N | 540 | 725 | 580 | 6U | 53.0 | With heat exchanger unit (OPHE-10R×1 unit) built-in thermostat |
| TCP50-H15N | 540 | 725 | 580 | 6U | 55.5 | With heat exchanger unit (OPHE-10R×1 unit) built-in thermostat |
| RCP50-P8N | 540 | 725 | 580 | 6U | 54.5 | With electronic cooler unit 8R (80W) with built-in temperature sensor alarm output terminals |
| RCP50-P15N | 540 | 725 | 580 | 6U | 59.5 | With electronic cooler unit 8R (80W) with built-in temperature sensor alarm output terminals |
