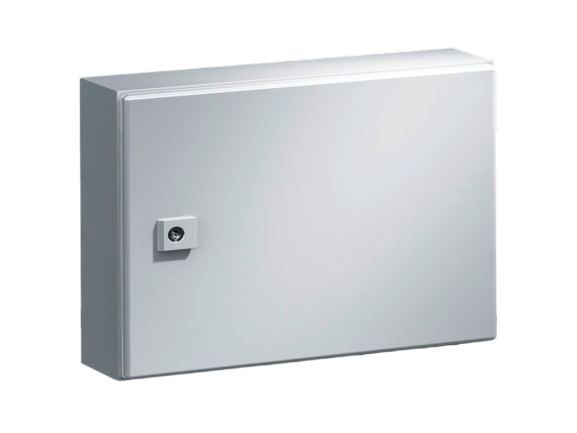

Material: Box: Steel plate. Door: Steel plate with foam polyurethane plastic seal around the perimeter

Surface: Box and door: dipped primer, powder coated, woven pattern. Mounting plate: galvanized

Color: RAL 7035

Protection class IP according to IEC 60 529: IP 66

Scope of delivery: Case with hinged door, closed cover plate all around and mounting plate at the bottom of the case. Lock: 3 mm double tooth

Dimensions: Width 380 mm Height 380 mm Depth 210 mm

Material thickness: box 1.38 mm door 1.5 mm mounting plate 2 mm

Mounting plate: width:334mm height 355 mm

Number of doors:1

Door hinge on the right, can be changed to the left:yes

Lock specification:flange

Number of locks: 1

Cylinder: 3 mm double tooth

Capping plate, size: 3

Capping plate, quantity:1

Packing unit: 1 piece

Weight/package: 9.8 kg
