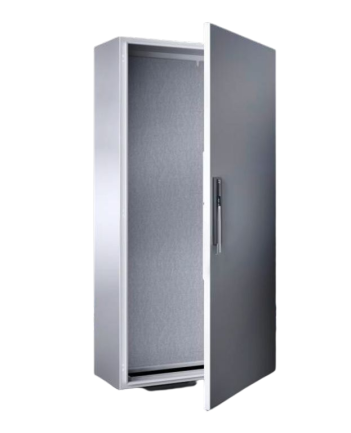

Industrial control cabinet>Tight-fitting system cabinet
| Material: box steel plate 1.5mm. door steel plate 2.0mm, surrounded with foam polyurethane plastic seal. Mounting plate steel plate 3.0mm Surface: Box and door dipping primer, outside by powder coating, weaving pattern. Mounting plate: galvanized Color: RAL 7035 Protection class IP according to IEC 60 529: IP 66 Scope of delivery: Housing with hinged door, three-point locking system with double tooth locking cylinder, open bottom of the mounting plate for individual cable introduction Basic material: steel plate Dimensions: Width 600mm Height 800mm Depth 400mm Mounting plate: width 540mm height 755mm Number of doors:1 Door hinges on the right, can be changed to the left:yes Packing unit: 1 piece Weight/package: 39kg |  |
Product specification
| Tight-fitting system cabinet | |||||||||||||||||||||||||
| model | W | 600 | 800 | 1200 | 600 | 600 | 700 | 800 | 800 | 1000 | 1200 | 600 | 800 | 1000 | 1000 | 1000 | 1200 | 1200 | 600 | 800 | 1000 | 1000 | 1000 | 1200 | 1200 |
| D | 400 | 500 | 500 | 400 | 500 | 500 | 400 | 500 | 400 | 400 | 500 | 500 | 500 | 600 | 800 | 600 | 800 | 500 | 500 | 500 | 600 | 800 | 600 | 800 | |
| H | 1600 | 1600 | 1600 | 1800 | 1800 | 1800 | 1800 | 1800 | 1800 | 1800 | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2200 | 2200 | 2200 | 2200 | |
| Mounting plates, document pockets, hanging rings, lights, fans | |||||||||||||||||||||||||
