2) Standards: Compliant with ANSI/EIA RS-310-D, DIN41491; PART1, IEC297-2, DIN41494: PART7, GB/T3047.2-92 standards; compatible with 19-inch international standards, metric standards and ETSI standards, providing third-party authoritative reports.

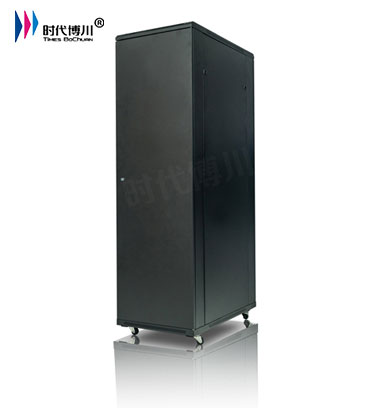

3）Features: The front door of the cabinet is single-opening glass door, the back door is single-opening panel door, ventilation rate ≥ 75%, the door and side panels are removable structure, the front door is equipped with senior rotary long bar lock, the back door is equipped with senior rotary long bar lock, the door's opening and closing rotation is flexible, and the opening angle is not less than 120°, the side door with the installation of quick-opening latch, easy to disassemble.

(4) Material: SPCC high-quality cold-rolled steel plate, column 2.0mm, other 1.2mm.

5) Configuration: 2 fixed plates, the cabinet front and rear door frame grounding, 2 "heavy-duty casters 4, M6 square nut screws 30 sets of tool box.

(6) static load: cabinet load-bearing not less than 1200KG (static 24 hours), to ensure that the long-term load-bearing situation of each component does not deformation bending. Meet the requirements of "comprehensive assembly frame for communication equipment" YD/T 1819-2008 and "network cabinet for data equipment technical requirements and inspection methods" YD/T 2319-2011, provide third-party load-bearing report.

(7) seismic: cabinet assembly structure, the bottom and top can be up and down into the line, can withstand the load of the top cable and structural components; cabinet internal installation columns, layer plate and other components. In the counterweight 600kg working conditions, can pass 8, 9 intensity structural seismic assessment, to meet the YD5083-2005 seismic requirements, to provide third-party authoritative seismic report.

(8) Appearance: Surface treatment using Japan-imported Paka auto multi-color spraying line, immersion degreasing, pickling, anti-rust phosphating, electrophoresis, pure water cleaning, drying and other treatments, the surface of imported plastic powder, to ensure the appearance of surface finish, uniform color, no dew, metal parts without burrs and rust, anti-static, to meet the national non-toxic and non-hazardous spraying standards, the overall coordination, with beautiful, no halo in the light of the server room.

9) Application: Data center, education, medical, transportation, finance and other industries.

10) Qualifications: ISO international quality system, 18000 occupational health system, 14000 environmental system, 3C certification, CE certification, static load certification, seismic certification and product industry certification, etc.

Translated with www.DeepL.com/Translator (free version)
