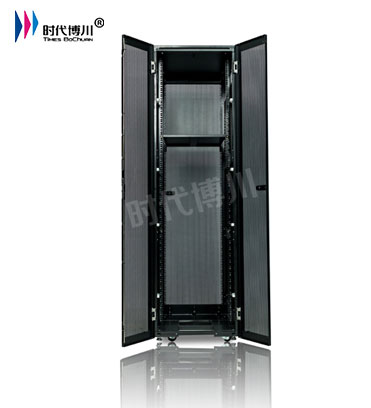

1) Brand: Times Bochuan, Model: WI6242, Color: RAL9005 International Black, Specifications: 600*1200*2000mm (W*D*H) server rack equipment installation space 42U.

2) Standards: Compliant with ANSI/EIA RS-310-D, DIN41491; PART1, IEC297-2, DIN41494: PART7, GB/T3047.2-92 standards; compatible with 19-inch international standards, metric standards and ETSI standards, providing third-party authoritative reports.

3）Features: The front door of the cabinet is a high-density hexagonal single-opening mesh door, the back door is a double-opening mesh door, ventilation rate ≥ 75%, door removable structure, the front door with senior rotating long bar lock, the back door with senior rotating long bar trolley lock, door opening and closing flexible rotation, and the opening angle is not less than 120 °, the side door with the installation of quick-opening latches, front and rear door luxury hinges, easy to remove.

4) Material: SPCC high-quality cold-rolled steel plate, column 2.0mm, other 1.2mm.

5) Configuration: 2 fixed plates, steel longitudinal cable management board 2, rear left and right installation (optional), cabinet front and rear door frame grounding wire 3 sets, 2 "heavy duty casters 4, M6 square nut screws 30 sets of tool box.

(6) static load: cabinet load-bearing not less than 1500KG (static 24 hours), to ensure that the long-term load-bearing situation of each component does not deformation bending. Meet the requirements of "comprehensive assembly frame for communication equipment" YD/T 1819-2008 and "network cabinet for data equipment technical requirements and inspection methods" YD/T 2319-2011, provide third-party load-bearing report.

(7) seismic: cabinet assembly structure, the bottom and top can be up and down into the line, can withstand the top cable and structural components of the load; cabinet internal installation columns, layer plate and other components. In the counterweight 600kg working conditions, can pass 8, 9 intensity structural seismic assessment, to meet the YD5083-2005 seismic requirements, to provide third-party authoritative seismic report.

(8) Appearance: Surface treatment using Japan-imported Paka auto multi-color spraying line, immersion degreasing, pickling, anti-rust phosphating, electrophoresis, pure water cleaning, drying and other treatments, the surface of imported plastic powder, to ensure the appearance of surface finish, uniform color, no dew, metal parts without burrs and rust, anti-static, to meet the national non-toxic and non-hazardous spraying standards, the overall coordination, with beautiful, no halo in the light of the server room.

9) Application: Data center, education, medical, transportation, finance and other industries.

10) Qualification: ISO international quality system, 18000 occupational health system, 14000 environmental system, 3C certification, CE certification, static load certification, seismic certification and product industry certification, etc.
