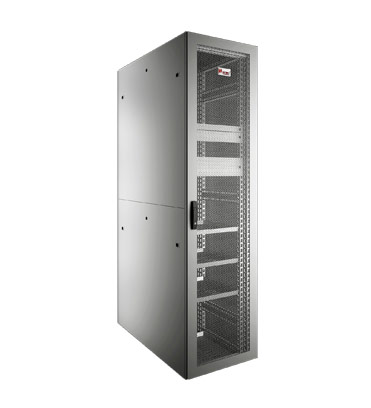

1) Brand: Times Bochuan, Model: WK6642, Color: RAL9005 International Black, Specification: 600*600*2000mm (W*D*H) Network rack equipment installation space 42U.

2) Standards: Compliant with ANSI/EIA RS-310-D, DIN41491; PART1, IEC297-2, DIN41494: PART7, GB/T3047.2-92 standards; compatible with 19-inch international standards, metric standards and ETSI standards, providing third-party authoritative reports.

3）Features: The front door of the cabinet is high-density hexagonal single-opening mesh door, the back door is double-opening mesh door, ventilation rate ≥ 75%, the door and side panels are removable structure, the front door is equipped with senior rotating long bar lock, the back door is equipped with senior rotating long bar trolley lock, the opening and closing of the door is flexible, and the opening angle is not less than 120°, the side door with installation of quick-opening latch, the front and rear doors are deluxe hinges, easy to disassemble.

4) Material: 18 fold profile welded frame, SPCC high-quality cold-rolled steel plate rolled into shape at one time, column 2.0mm, other 1.2mm.

5）Configuration: 2 fixed plates, 2 steel longitudinal cable management slots, rear left and right installation (optional), 3 sets of grounding wires for the front and rear door frame of the cabinet, 4 sets of 2 "heavy-duty casters, 30 sets of M6 square nut screws tool box.

(6) static load: cabinet load-bearing not less than 1500KG (static 24 hours), to ensure that the long-term load-bearing situation of each component does not deformation bending. Meet the requirements of "comprehensive assembly frame for communication equipment" YD/T 1819-2008 and "network cabinet for data equipment technical requirements and inspection methods" YD/T 2319-2011, provide third-party load-bearing report.

(7) seismic: cabinet assembly structure, the bottom and top can be up and down into the line, can withstand the top cable and structural components of the load; cabinet internal installation columns, layer plate and other components. In the counterweight 600kg working conditions, can pass 8, 9 intensity structural seismic assessment, to meet the YD5083-2005 seismic requirements, to provide third-party authoritative seismic report.

(8) Appearance: Surface treatment using Japan-imported Paka auto multi-color spraying line, immersion degreasing, pickling, anti-rust phosphating, electrophoresis, pure water cleaning, drying and other treatments, the surface of imported plastic powder, to ensure the appearance of surface finish, uniform color, no dew, metal parts without burrs and rust, anti-static, to meet the national non-toxic and non-hazardous spraying standards, the overall coordination, with beautiful, no halo in the light of the server room.

9) Application: Data center, education, medical, transportation, finance and other industries.

10) Qualification: ISO international quality system, 18000 occupational health system, 14000 environmental system, 3C certification, CE certification, static load certification, seismic certification and product industry certification, etc.
