Electrical cabinet essential 6 products, you know how many
Date：2022-11-11 | Hits：422
With the progress of high and new technology, the use of various modern equipment has increased significantly, which makes the application of electrical equipment in power plants, substations, metallurgy and chemical industry, equipment manufacturing and commercial residential scenes more and more extensive.

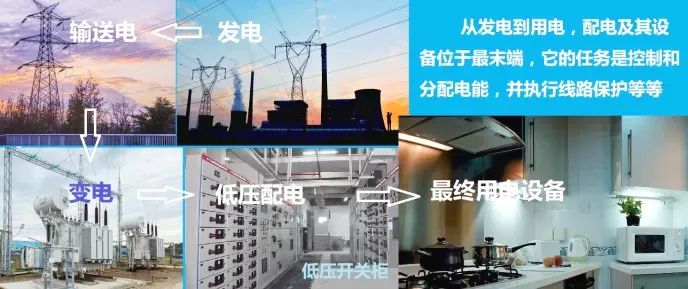

As we all know, in the whole link of power generation - transmission and distribution - electricity, the end of the distribution cabinet and low-voltage switchgear will be configured, and the low-voltage 400V electric energy from the power transformer will be distributed and controlled, providing stable and reliable electric energy to the final electrical equipment.
Drawer type switchgear/distribution cabinet is an important control equipment in the power grid system. Because of its small footprint, low construction cost, closed, high safety performance, and relatively perfect supporting facilities, it has brought great convenience for the centralized overhaul and maintenance of the power grid system.

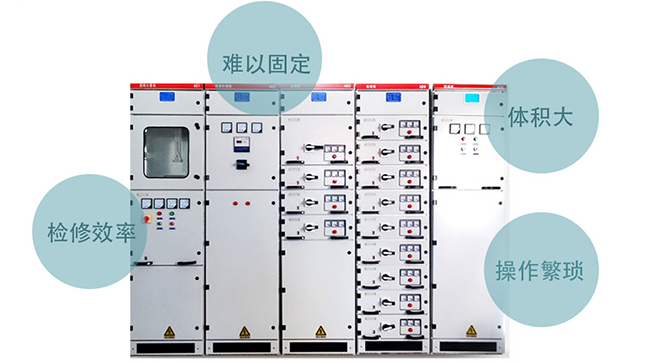

Several common drawer type low-voltage switchgear

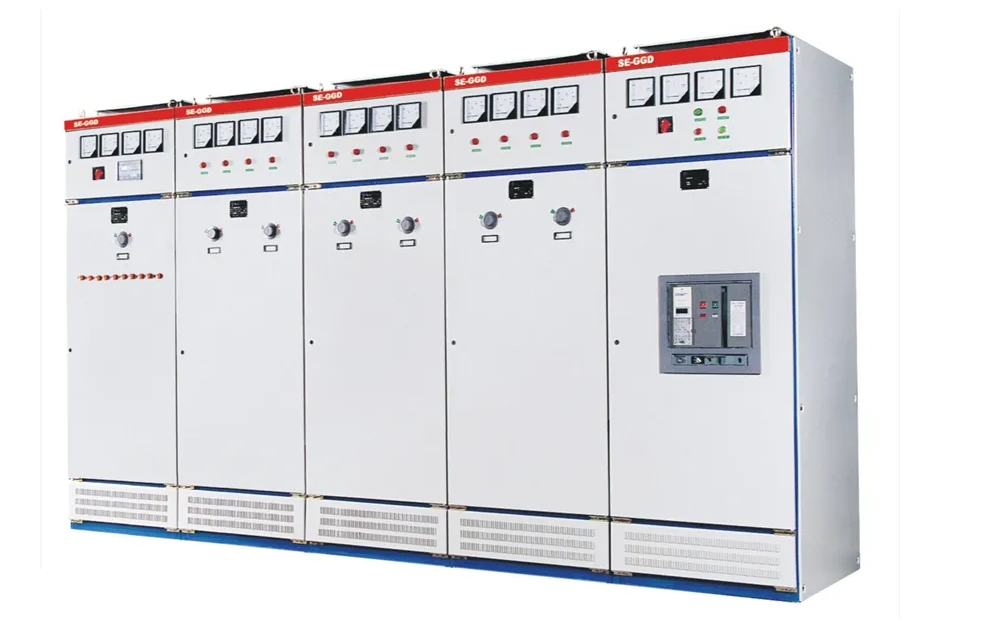

GGD drawer type low voltage switchgear
This type of switch mechanism is reasonable, easy installation and maintenance, good protection performance, high breaking capacity, large capacity, strong dynamic stability, wide applicability of electrical solutions and other advantages, can be used as replacement products.

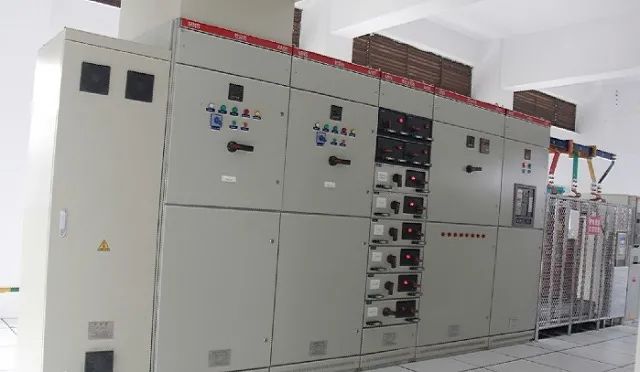

GCK drawer type low voltage switchgear
GCK drawer type low-voltage switchgear has high segmentation ability, good dynamic and thermal stability, advanced and reasonable structure, flexible electrical program, and arbitrary combination of various program units. GCK cabinet can accommodate more circuits, save floor space, high protection level, safe and reliable, easy maintenance.

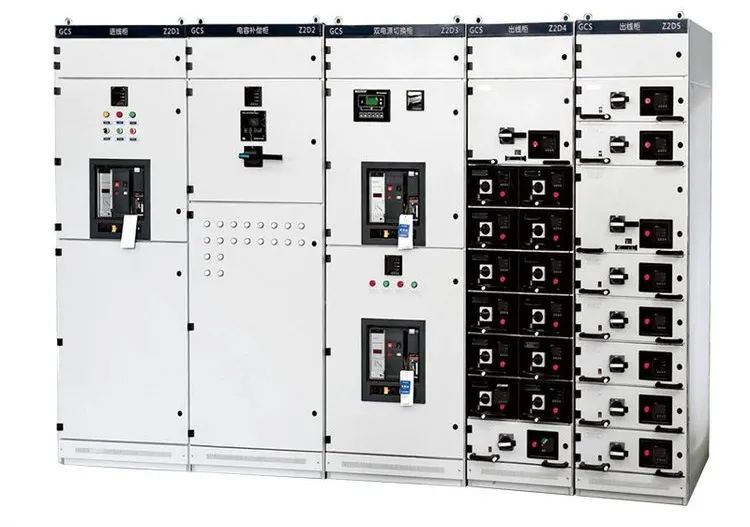

GCS drawer type low voltage switchgear
GCS low-voltage drawer switchgear is a new low-voltage drawer low-voltage switchgear designed according to the principles of safety, economy, rationality and reliability. It has a high technical performance index, can meet the needs of the development of the power market, and can compete with the existing imported products. It has the characteristics of strong sectional switching ability and good dynamic and thermal stability.
MNS drawer type low voltage switchgear
MNS drawer type low-voltage switchgear design compact, can be smaller space to accommodate more functional units, structure versatility, flexible assembly. The standard module design can be self-assembled according to user requirements, which can greatly compress the storage and transportation of pre-made sites, and convenient assembly does not require special methods.
For the design and technical requirements of the cabinet structure, see GB7251.1-2013 "Low-voltage switchgear and control equipment Part 1: General Provisions";
The standard of drawer type low-voltage switchgear is: GB/T 24274 "Low-voltage withdraw-type complete switchgear and control equipment".
With the popularity of modular structure, the production of switchgear, distribution cabinet, control cabinet, and related cabinet components is also transitioning to modularity and standardization; However, no matter how the change and evolution, safety is always the basic requirement of the use of power equipment, only safety and stability are guaranteed, in order to ensure the efficiency of assembly and maintenance.
Dalek is the core product of electrical equipment such as distribution cabinet, low voltage switchgear, control cabinet, etc.

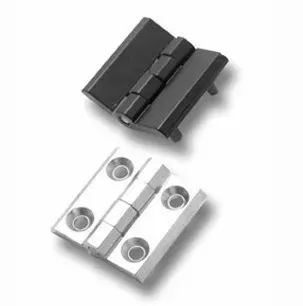

Exposed hinge, M6 stud installation, stable and reliable. The maximum opening Angle is 270 degrees. It is suitable for large cabinets and easy to replace.

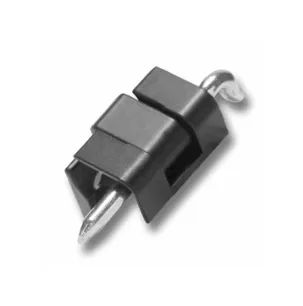

Semi-hidden hinge, door folding height 25mm, left and right doors universal, opening Angle 180°, external door can be completely opened.

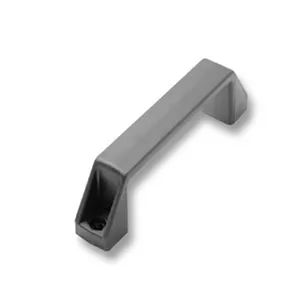

Bridge handle for heavy doors. The use of screw hidden installation, insulation, anti-scratch, can further improve the safety of equipment.

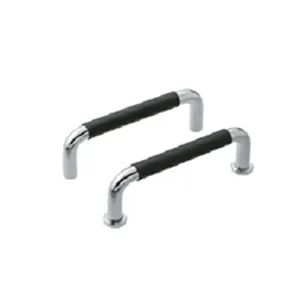

Bridge handle, linear design, handle with rubber sleeve, non-slip insulation, safe and reliable, internal thread type, can be fixed by screws.

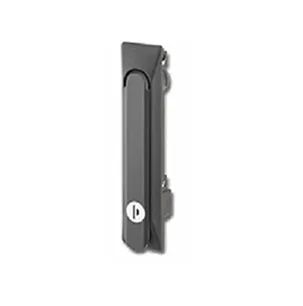

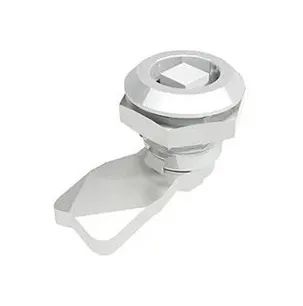

Right Angle rotary lock, left and right door universal, easy to install the lock body, optional rubber flat pad and O-ring IP grade can reach IP65/67. Quick installation of crank lock, tool free installation, there is a certain anti-theft. Protruding door surface thin, save cabinet space, can reduce accidental scratches.
