Through two methods to explain the 10 fold profile technology and 18 fold profile cabinet introducti
日期：2022年09月16日 | 浏览次数：561

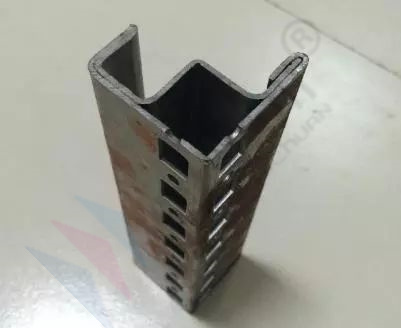

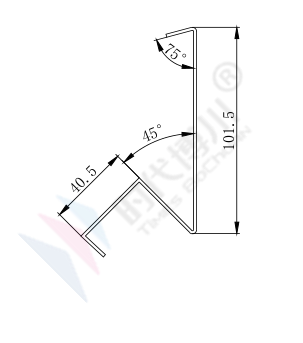

The nine-fold profile is named for the number of bending of the column and beam structure (9 times), and it is rolled by the roll forming machine of cold rolled steel plate.
Before explaining how to use the bending machine to bend the tenfold profile, let's popularize the use of the tenfold profile.
Nine fold profile is mainly used for making chassis cabinets.
The nine fold profile cabinet is a closed column and beam structure, which has high strength, large force, low cost and small space occupancy than the traditional open beam and column and C-profile structure, and has won the favor of users. This technology is the cabinet processing technology of Witu company in Germany, and the current tenfold profile cabinet has been imitated by domestic enterprises.
Nine fold profile cabinet material: the national standard cold-rolled steel plate, high-grade stainless steel, can choose stainless steel SUS304L(food and beverage industry), SUS316L(medical and pharmaceutical industry), SUS201(economic stainless steel); Door panel 2.0mm;
Cabinet 1.5mm; Frame 1.5mm; Back plate and side plate 1.5mm; Mounting plate 3.0mm(optional 2.5mm).
Nine fold profile cabinet surface treatment: steel plate, cabinet, base and door surface after pickling, phosphating, wax removal, washing, purification and other 12 international standard pre-treatment processes, the surface spray plastic, can be sprayed according to the demand of any color, stainless steel is generally double-sided wire drawing treatment.

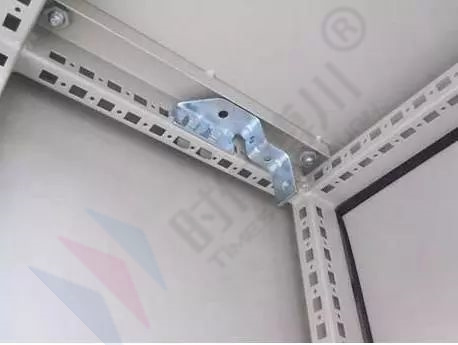

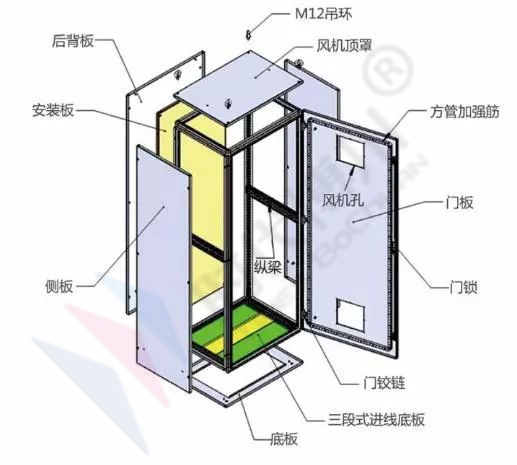

Nine fold profile cabinet standard configuration: nine fold profile frame, front door, mounting plate, rear backplane, top plate, side plate, base, hanging ring, three section galvanized wire entry base plate, one punch beam, tie rod three point double tooth lock, process lock, cabinet door with galvanized square pipe, reinforcement bar and polyurethane foam seal strip
Under normal circumstances, this type of profile generally does not need to be made by the sheet metal factory itself, and can be purchased. In special cases, the sheet metal factory can also bend itself. The following will explain the bending methods of two kinds of tenfold profiles.

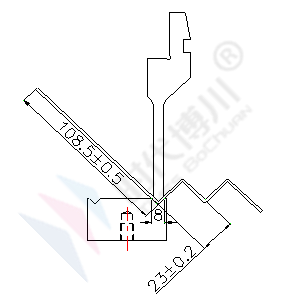

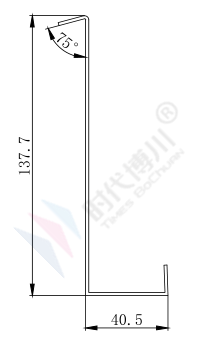

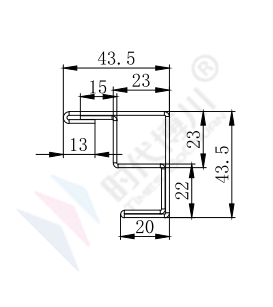

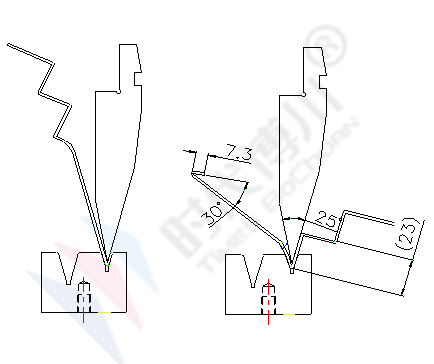

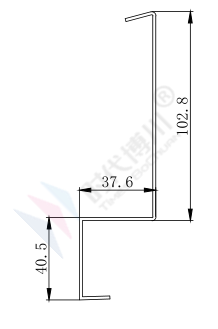

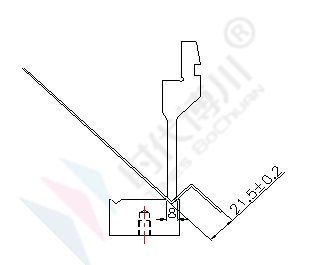

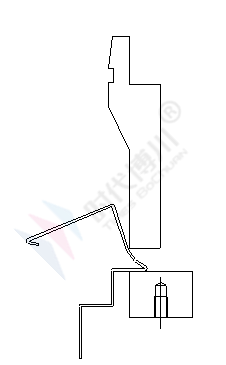

The first method

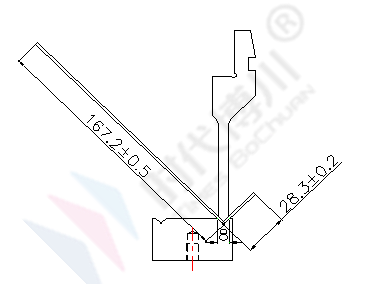

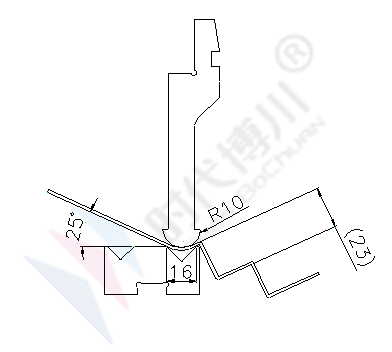

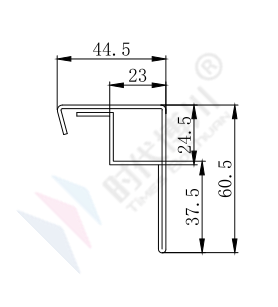

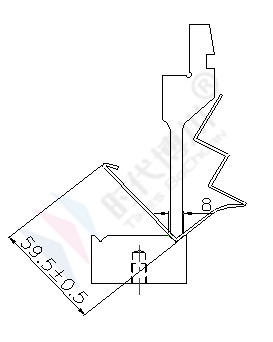

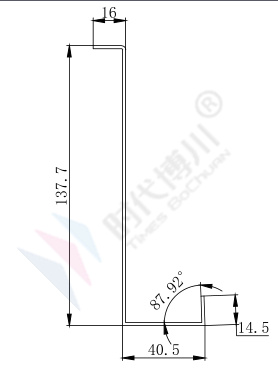

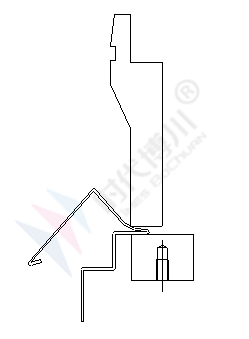

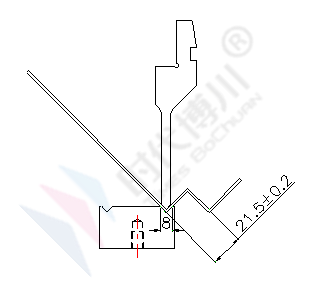

The second method

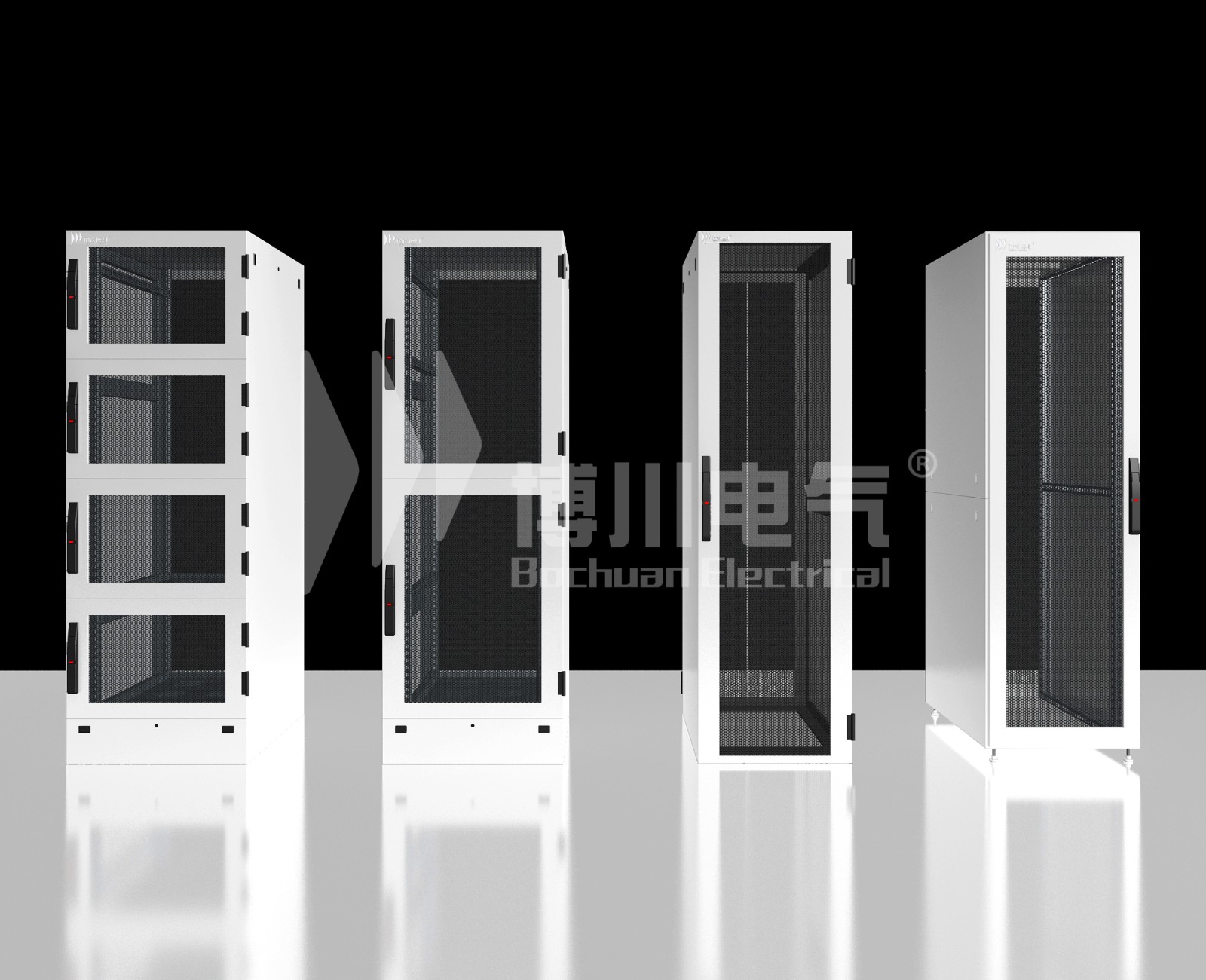

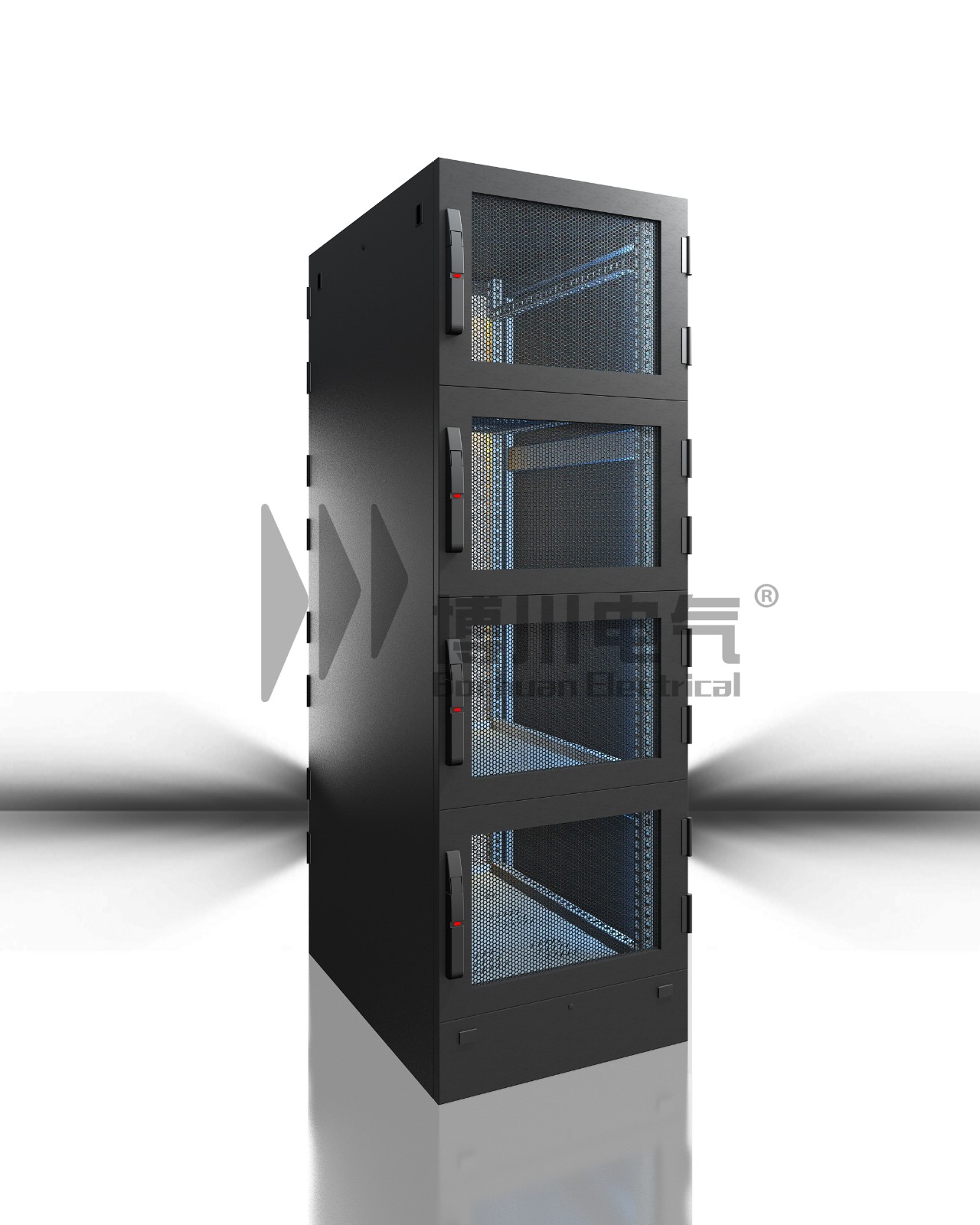

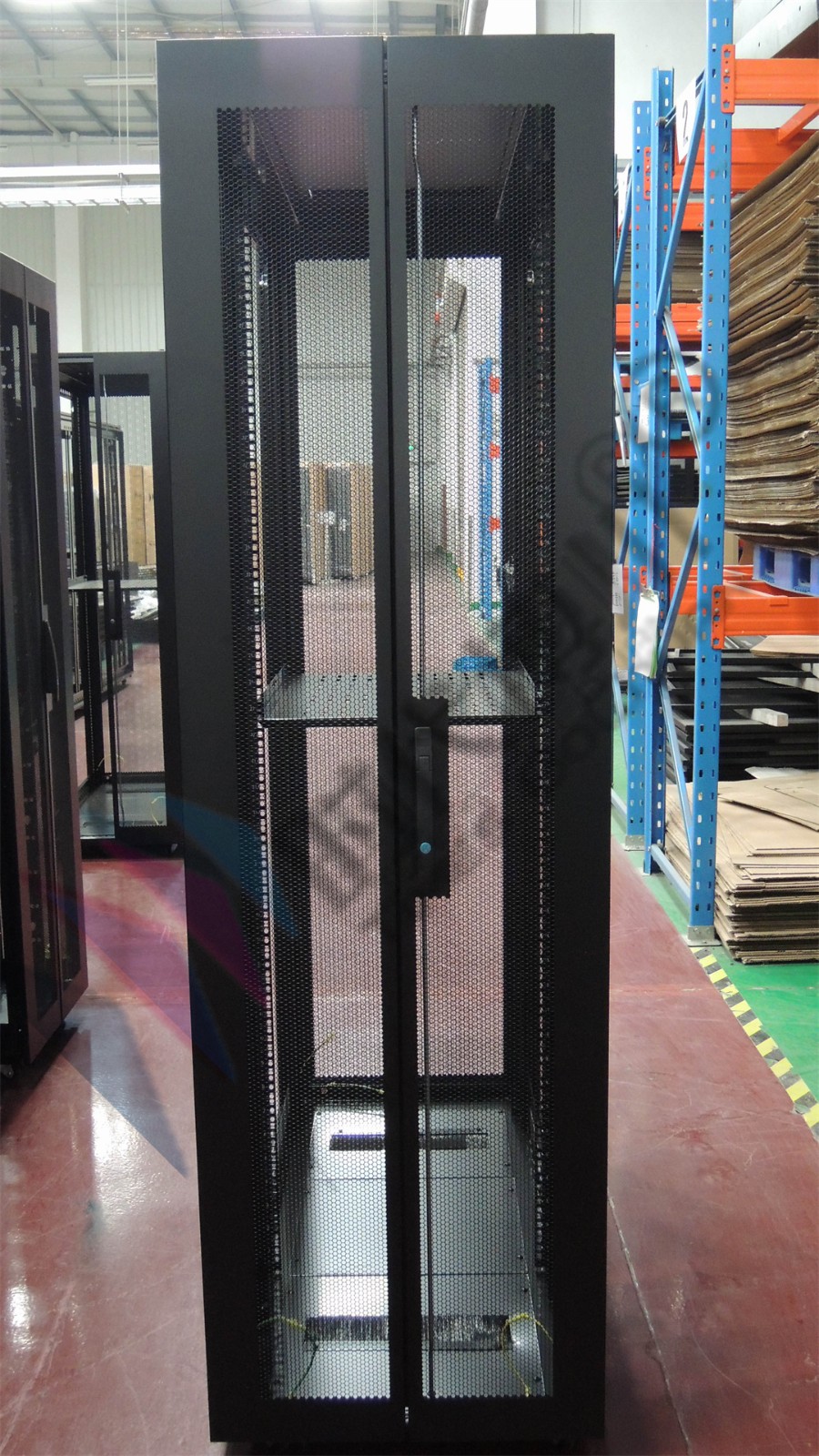

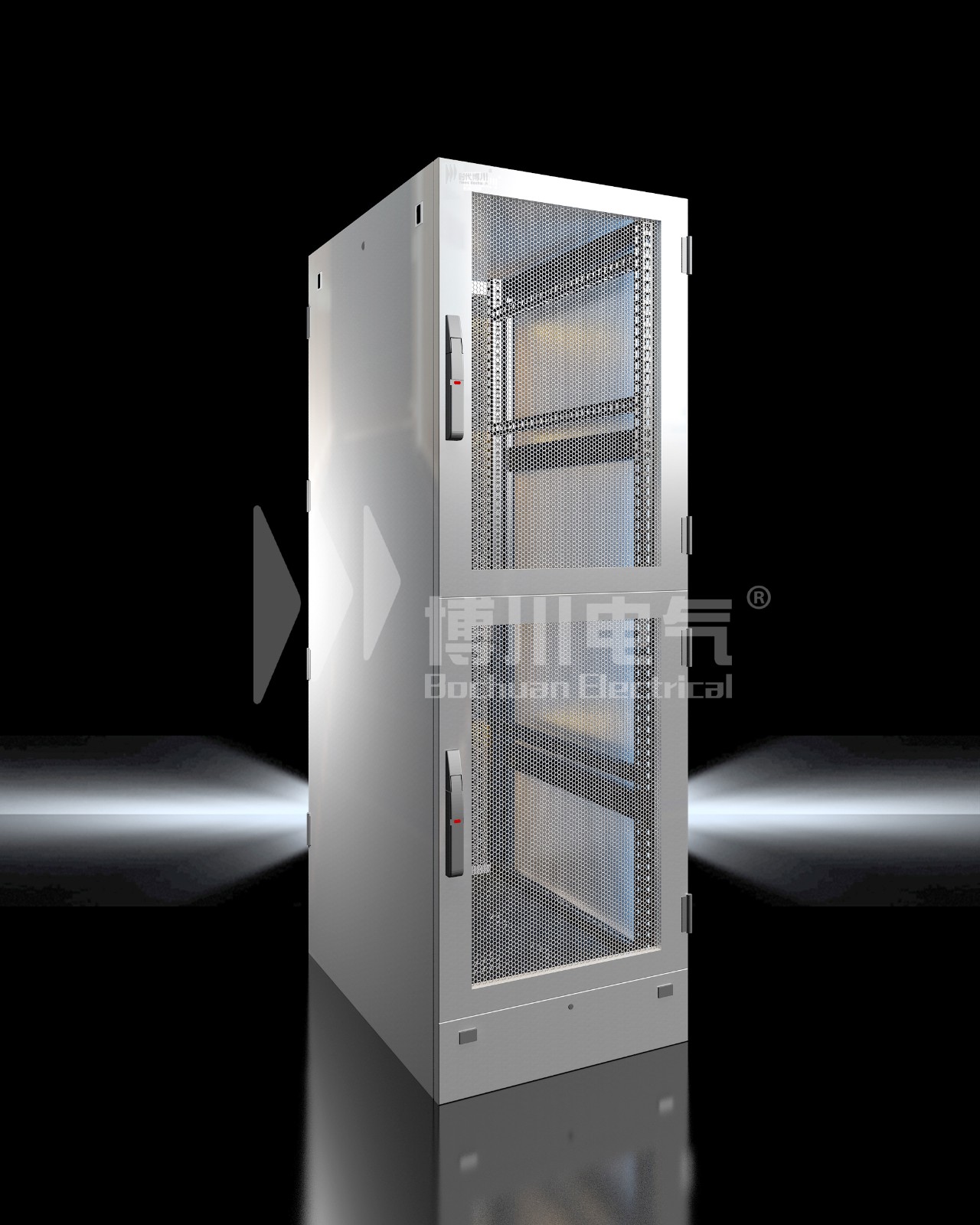

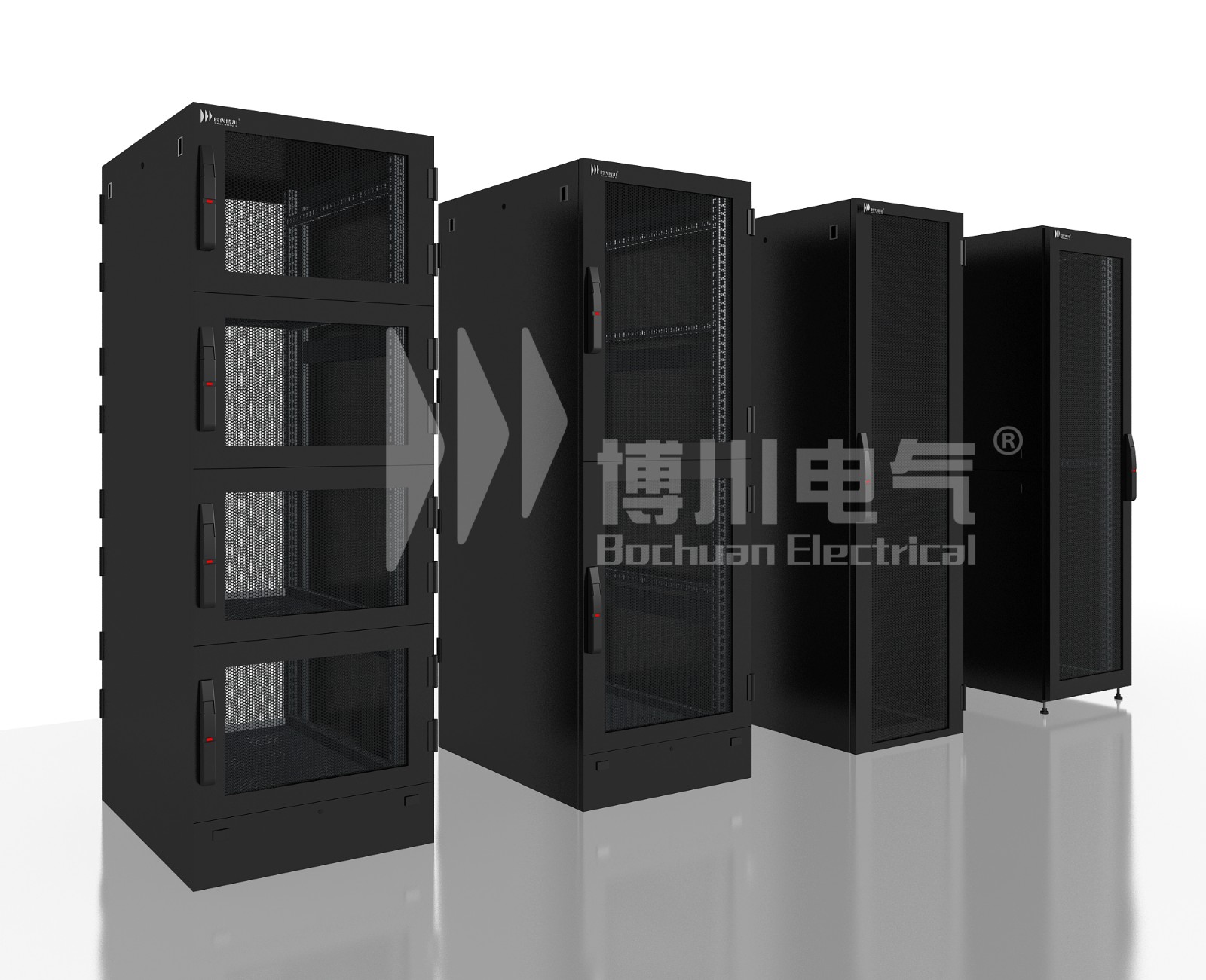

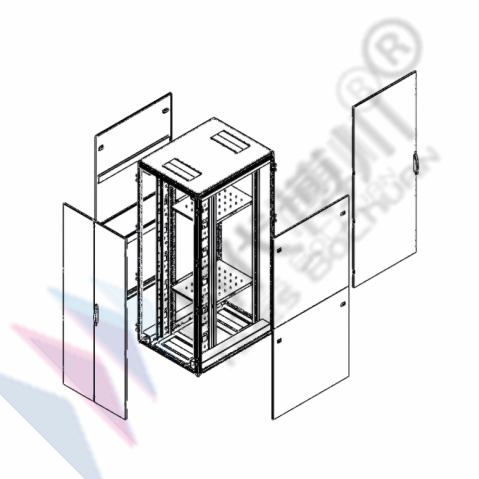

Time Bochuan adopts 18-fold profile welding frame, SPCC high-quality cold rolled steel plate one roll molding
